L5965SQ-V0Y - STMicroelectronics

Description: Multiple power management for automotive vision and radar systems

Download L5965SQ-V0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

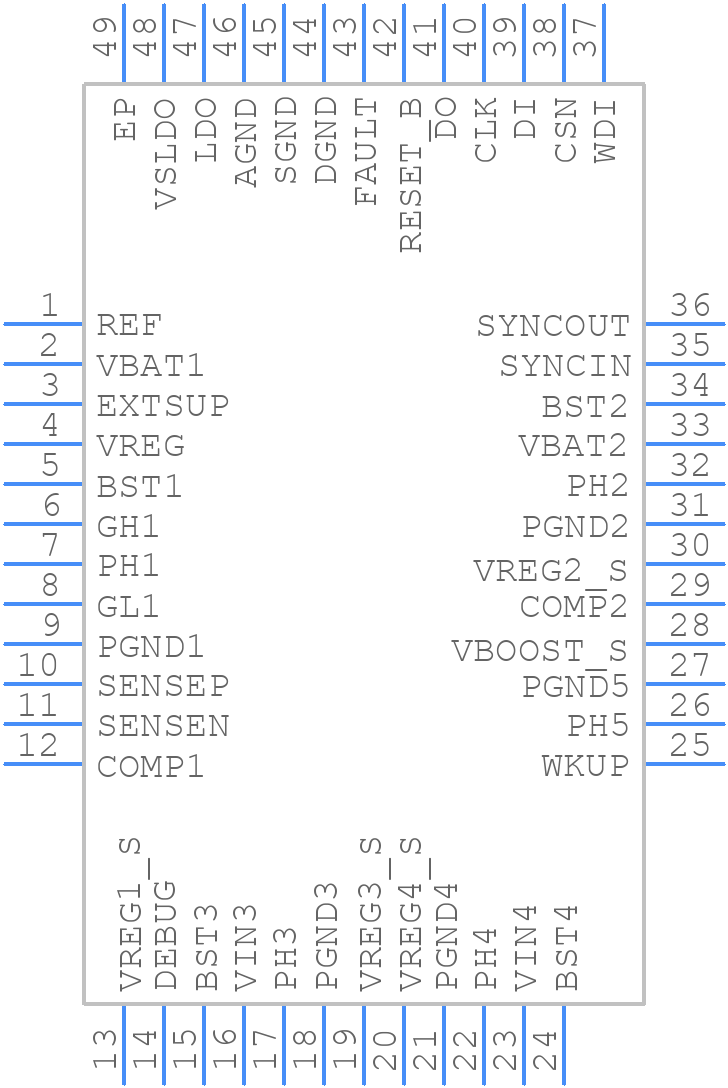

L5965SQ-V0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5965SQ-V0Y - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022-2
click to zoom
3D Models
L5965SQ-V0Y - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48 7x7x1.0 mm_2022-2
click to zoom

L5965SQ-V0Y Details

  • Manufacturer Part Number:

    L5965SQ-V0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    VFQFPN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.2,3.4V

  • Width:

    7 mm

L5965SQ-V0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Consult the application note AN4553 for more detailed guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation is typically around 125°C. Exceeding this temperature may lead to reduced performance, increased power consumption, or even device failure.
  • Implement overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients or faults. The application note AN4553 provides examples of OVP and UVP circuits that can be used with the L5965SQ-V0Y.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general guideline is to use a low-ESR capacitor with a value between 10uF to 47uF. Consult the application note AN4553 for more detailed guidance on output capacitor selection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5965SQ-V0Y Overview

Use the download button to access the L5965SQ-V0Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5965, or try a keyword search, such as Power Management Circuits
