L5988DTR - STMicroelectronics

Description: Switching Voltage Regulators 4A Step Down Reg 2.9V to 18V 200ns

Download L5988DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

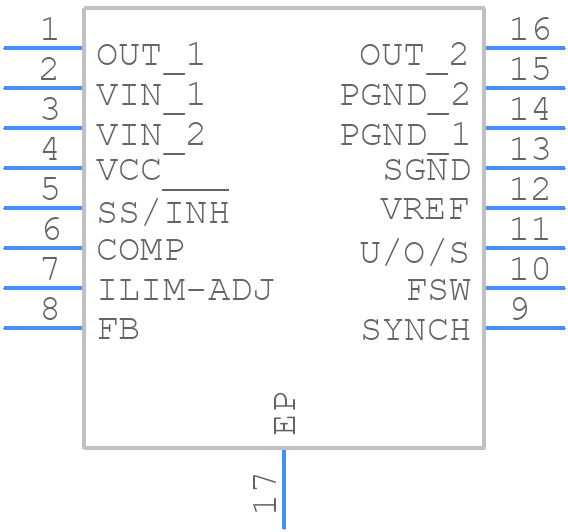

Symbol
L5988DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5988DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16_2024-1
click to zoom
3D Models
L5988DTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16_2024-1
click to zoom

L5988DTR Details

  • Manufacturer Part Number:

    L5988DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    HTSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

L5988DTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 47uF. Consult the application note AN4553 for more detailed guidance.
  • The L5988DTR is rated for operation up to 150°C junction temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 125°C to ensure a safe margin for thermal derating.
  • Yes, the L5988DTR is qualified according to the AEC-Q100 standard for automotive applications and is suitable for high-reliability applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the specific application requirements.
  • Consult the application note AN4553, which provides detailed troubleshooting guidelines for common issues like overvoltage, undervoltage, and overcurrent faults. Additionally, use the device's built-in protection features, such as the fault flag output, to help diagnose and debug issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5988DTR Overview

Use the download button to access the L5988DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5988, or try a keyword search, such as Switching Regulator or Controllers
