L5989DTR - STMicroelectronics

Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 16-PowerTSSOP (0.173", 4.40mm Width) n

Download L5989DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

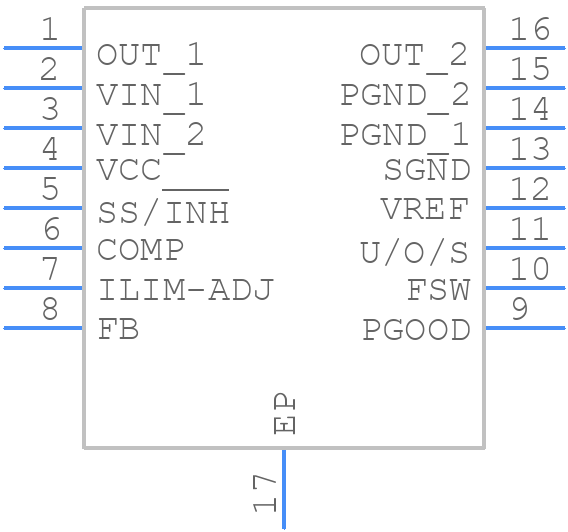

L5989DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5989DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16 _2025-1.1
click to zoom
3D Models
L5989DTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16 _2025-1.1
click to zoom

L5989DTR Details

  • Manufacturer Part Number:

    L5989DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    HTSSOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 18V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.06 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

L5989DTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Consult the application note AN4553 for more detailed guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general rule, it's recommended to keep the ambient temperature below 125°C to ensure reliable operation and minimize thermal stress.
  • Yes, the L5989DTR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive-grade components and is suitable for use in harsh environments. However, it's essential to consult the specific requirements of your application and ensure that the device meets all necessary standards and regulations.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4553, which covers common issues and their possible causes. Additionally, the datasheet provides information on fault detection and protection features, such as overvoltage protection, undervoltage lockout, and thermal shutdown.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5989DTR Overview

Use the download button to access the L5989DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5989, or try a keyword search, such as Switching Regulator or Controllers
