L5991D013TR - STMicroelectronics

Description: STMicroelectronics L5991D013TR, PWM Current Mode Controller, 1.5 A, 1 MHz, 16 V, 16-Pin SOIC

Download L5991D013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

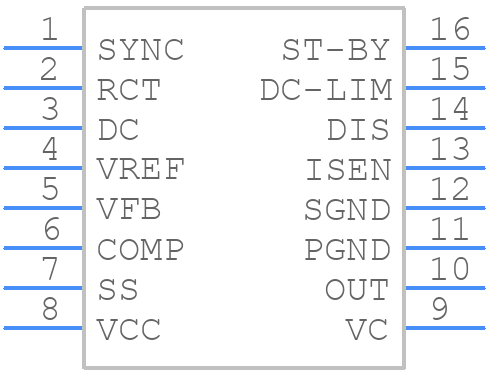

L5991D013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L5991D013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - (SO16 Narrow)
click to zoom
3D Models
L5991D013TR - STMicroelectronics - 3D model - Small Outline Packages - (SO16 Narrow)
click to zoom

L5991D013TR Details

  • Manufacturer Part Number:

    L5991D013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    35 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    21 V

  • Input Voltage-Min:

    12 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    13 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BCDMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L5991D013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L5991D013TR should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequences outlined in the datasheet. Also, ensure that the input voltage rises and falls monotonically, and that the input voltage is stable before enabling the device.
  • When selecting external components, consider the input and output capacitors, inductor, and diode. Choose components with low ESR, high ripple current rating, and suitable voltage ratings. The inductor should have a high saturation current rating and low DCR.
  • To optimize the device for low standby power consumption, ensure that the device is in shutdown mode when not in use. Also, consider using a low-quiescent-current voltage regulator for the bias supply, and minimize the number of external components to reduce standby power consumption.
  • For EMI filtering and shielding, consider using a common-mode choke, X-capacitors, and Y-capacitors to filter out conducted emissions. Use a shielded enclosure and ensure good grounding practices to minimize radiated emissions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L5991D013TR Overview

Use the download button to access the L5991D013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L5991, or try a keyword search, such as Switching Regulator or Controllers
