L6205N - STMicroelectronics

Description: L6205N, Stepper Motor Controller, Bipolar Stepping Motor, 100 (Maximum)kHz 8 → 52 V, 20-Pin PDIP

Download L6205N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

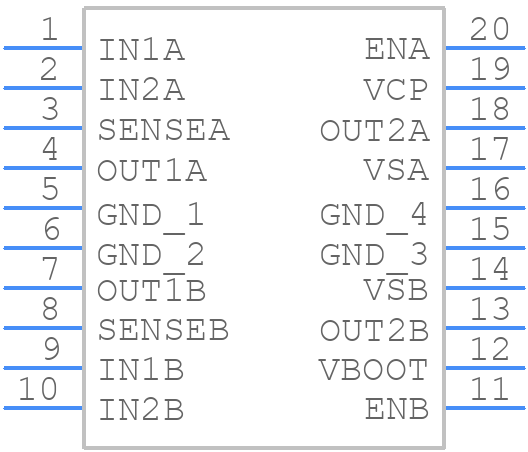

L6205N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

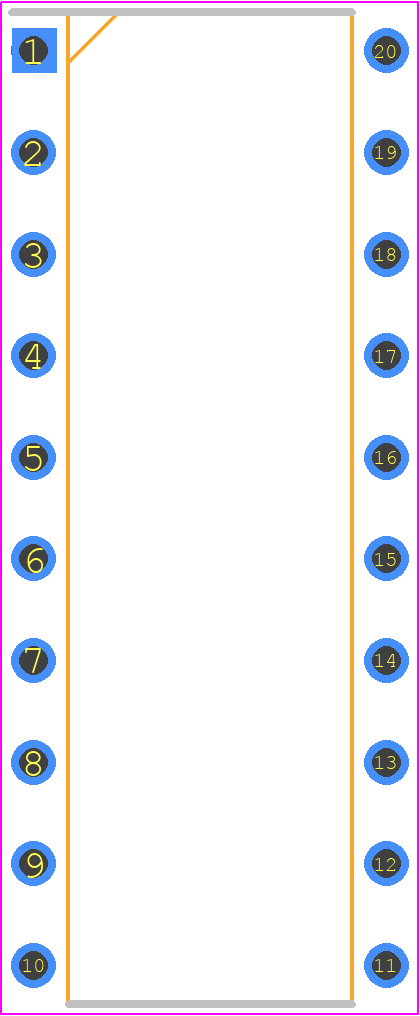

L6205N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Powerdip 20
click to zoom
3D Models
L6205N - STMicroelectronics - 3D model - Dual-In-Line Packages - Powerdip 20
click to zoom

L6205N Details

  • Manufacturer Part Number:

    L6205N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6205N Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the L6205N is 100 kHz, but it can be operated up to 200 kHz with some limitations.
  • The sense resistor value depends on the desired current limit and the voltage supply. A general rule of thumb is to choose a sense resistor value that sets the current limit to 1.5 to 2 times the maximum expected current.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage. It is charged through the bootstrap diode and discharged through the high-side MOSFET.
  • The L6205N has built-in overvoltage and undervoltage protection, but additional external protection circuits can be added to provide extra protection. For example, a voltage supervisor can be used to monitor the input voltage and shut down the device if it exceeds the maximum rating.
  • The maximum power dissipation of the L6205N depends on the package type and the ambient temperature. For the PDIP package, the maximum power dissipation is 1.4 W at 25°C, while for the PowerSO package, it is 2.5 W at 25°C.
