Part Image

L6210 - STMicroelectronics

Description: Dual bridge motor controller,L6210,Tube

Download L6210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

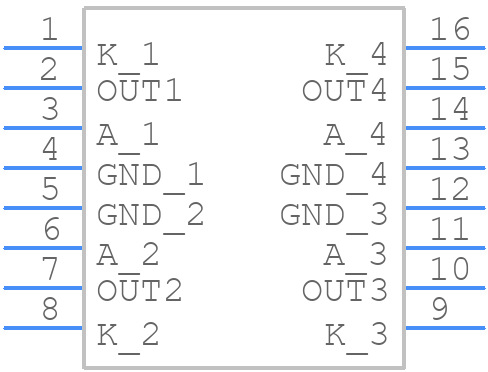

L6210 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6210 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP 16
click to zoom
3D Models
L6210 - STMicroelectronics - 3D model - Dual-In-Line Packages - PDIP 16
click to zoom

L6210 Details

  • Manufacturer Part Number:

    L6210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    POWER, PLASTIC, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Configuration:

    2 BANKS, BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.2 V

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Number of Elements:

    8

  • Number of Phases:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    50 V

  • Reverse Current-Max:

    1000 µA

  • Reverse Test Voltage:

    40 V

  • Surface Mount:

    NO

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

L6210 Frequently Asked Questions (FAQs)

  • The L6210 can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The L6210 requires a single 5V supply voltage (VCC) and a decoupling capacitor (typically 100nF) between VCC and GND to ensure stable operation.
  • The EN pin is an active-high input that enables or disables the device. When EN is high, the L6210 is enabled, and when EN is low, the device is in shutdown mode, reducing power consumption.
  • The L6210 can be configured for half-bridge or full-bridge operation by connecting the appropriate pins (HB/FB, HSB, LSB) according to the application requirements, as described in the datasheet.
  • The L6210 can deliver up to 1.5A of output current per channel, making it suitable for a wide range of motor control and power switching applications.
