- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L6219DSA
- Part Number L6219DSA
- Manufacturer STMicroelectronics
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO24
- Released Date Dec 17, 2025
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L6219DSA Details
-
Manufacturer Part Number:
L6219DSA
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SO-24
-
Pin Count:
24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
L6219DSA Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the L6219DSA is -40°C to 150°C, but it's recommended to operate within -20°C to 125°C for optimal performance.
-
To ensure proper thermal management, make sure to provide a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. You can also use thermal interface materials to improve heat transfer.
-
For optimal performance, it's recommended to follow a 4-layer PCB layout with a solid ground plane, and to keep the high-current paths as short as possible. Also, ensure that the decoupling capacitors are placed close to the device.
-
You can use voltage regulators or overvoltage protection (OVP) circuits to protect the L6219DSA from overvoltage conditions. For undervoltage protection, you can use undervoltage lockout (UVLO) circuits or voltage supervisors.
-
The recommended input capacitor value for the L6219DSA is 10uF to 22uF, with a voltage rating of at least 25V. The capacitor should be placed close to the device and have low ESR to ensure stable operation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L6219DSA Overview

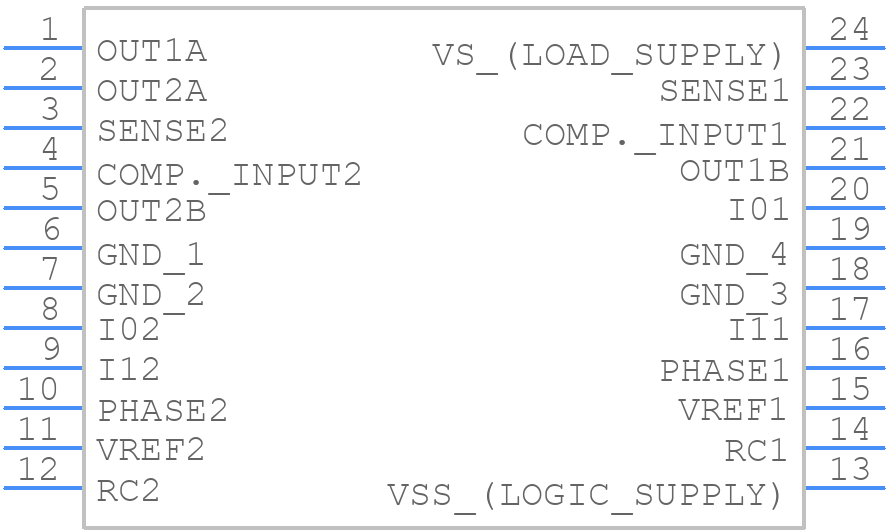

Use the download button to access the L6219DSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6219,
or try a keyword search, such as Motion Control Electronics
