L6226DTR - STMicroelectronics

Description: Bipolar Motor Driver DMOS Parallel 24-SOIC

Download L6226DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

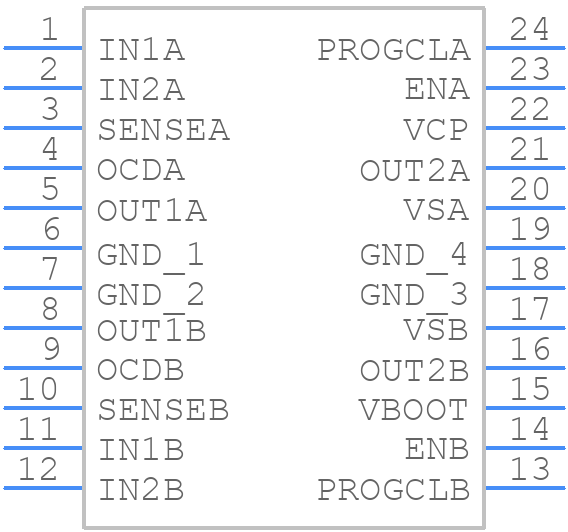

L6226DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6226DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-24
click to zoom
3D Models
L6226DTR - STMicroelectronics - 3D model - Small Outline Packages - SO-24
click to zoom

L6226DTR Details

  • Manufacturer Part Number:

    L6226DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

L6226DTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the L6226DTR is -40°C to 150°C, but it's recommended to operate within -20°C to 125°C for optimal performance and reliability.
  • The inductor value depends on the output voltage, current, and switching frequency. A general rule of thumb is to choose an inductor with a value between 1-10 μH. You can use STMicroelectronics' online inductor selection tool or consult the application note AN4554 for more guidance.
  • To minimize EMI and noise, it's essential to follow a good PCB layout practice. Keep the switching node (SW) as small as possible, and place the inductor close to the IC. Use a solid ground plane, and keep the input and output capacitors close to the IC. Avoid routing sensitive signals near the switching node. Consult the application note AN4554 for more detailed guidelines.
  • You can use external voltage supervisors or overvoltage protection (OVP) circuits to protect the L6226DTR from overvoltage conditions. For undervoltage conditions, you can use a voltage detector or a brown-out detector to reset the IC or shut it down. Consult the application note AN4554 for more information on protection circuits.
  • The maximum output current capability of the L6226DTR is 2.5 A, but it's recommended to derate the current based on the ambient temperature and the PCB layout. Consult the datasheet and application note AN4554 for more information on thermal derating and current capability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6226DTR Overview

Use the download button to access the L6226DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6226, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
