L6226N - STMicroelectronics

Description: DMOS Dual Full Bridge Driver

Download L6226N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

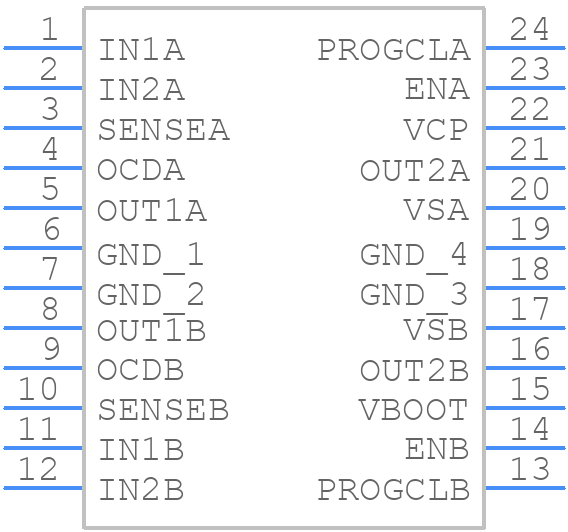

L6226N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

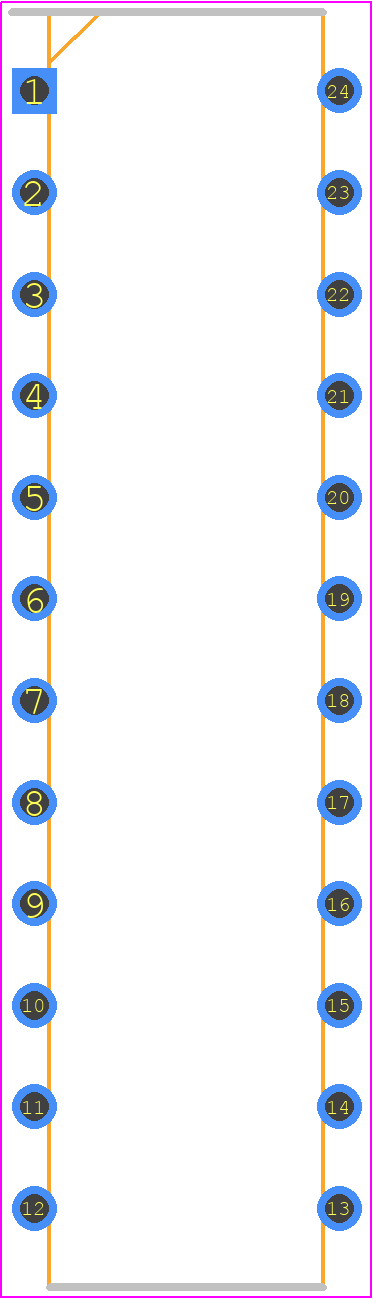

L6226N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP24
click to zoom
3D Models
L6226N - STMicroelectronics - 3D model - Dual-In-Line Packages - PDIP24
click to zoom

L6226N Details

  • Manufacturer Part Number:

    L6226N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.32 mm

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6226N Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the L6226N is -40°C to 150°C, but it's recommended to operate within -20°C to 125°C for optimal performance.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, provide a stable voltage supply, and wait for the internal voltage regulator to settle before enabling the device.
  • For optimal performance, follow STMicroelectronics' recommended PCB layout guidelines, including keeping the power supply lines short and wide, using a solid ground plane, and minimizing noise coupling between analog and digital signals.
  • To troubleshoot issues, start by checking the power supply, clock signal, and input/output connections. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the L6226N is suitable for high-reliability and safety-critical applications, but it's essential to follow STMicroelectronics' guidelines for fault detection, error handling, and redundancy. Additionally, ensure compliance with relevant industry standards and regulations.
