L6227PD - STMicroelectronics

Description: L6227PD, Full Bridge Motor Driver, Full Bridge PWM, 8 → 52 V, 36, 38-Pin PowerSO

Download L6227PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

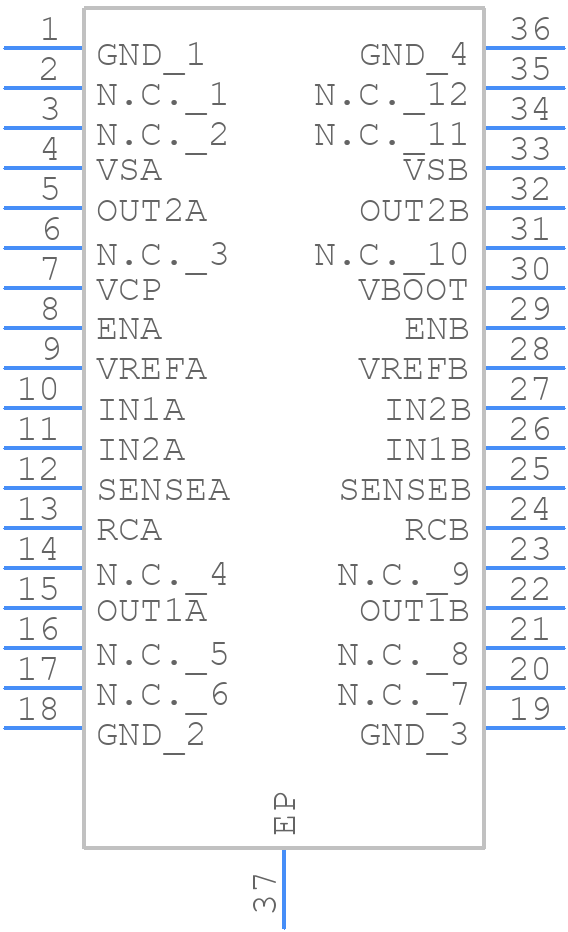

L6227PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6227PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-36
click to zoom
3D Models
L6227PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-36
click to zoom

L6227PD Details

  • Manufacturer Part Number:

    L6227PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6227PD Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the L6227PD is -40°C to 150°C, but it's recommended to operate within -20°C to 125°C for optimal performance.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, provide a stable voltage supply, and wait for the internal voltage regulator to settle before enabling the device.
  • For optimal performance, follow STMicroelectronics' recommended PCB layout guidelines, including keeping the power supply lines short and wide, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To troubleshoot issues, start by checking the power supply, clock signal, and input/output connections. Use an oscilloscope to verify signal integrity and check for any signs of overheating or electrical overstress.
  • Yes, the L6227PD is suitable for high-reliability and safety-critical applications, but it's essential to follow STMicroelectronics' guidelines for fault detection, error handling, and redundancy, as well as comply with relevant industry standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6227PD Overview

Use the download button to access the L6227PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6227, or try a keyword search, such as Motion Control Electronics
