L6229PD - STMicroelectronics

Description: STMicroelectronics L6229PD, BLDC Motor Driver IC, 52 V 1.4A 24-Pin, SOIC

Download L6229PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

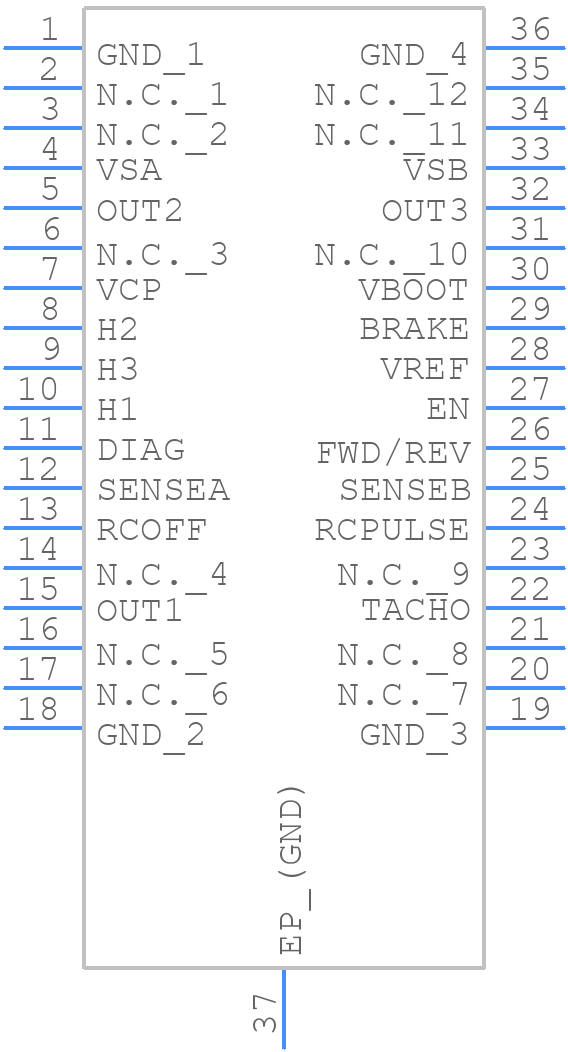

Symbol
L6229PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6229PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36(L6229)
click to zoom
3D Models
L6229PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36(L6229)
click to zoom

L6229PD Details

  • Manufacturer Part Number:

    L6229PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.5 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6229PD Frequently Asked Questions (FAQs)

  • The L6229PD can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The sense resistor value depends on the maximum current you want to measure and the desired voltage drop across the resistor. A common value is 0.1 ohm, but you can use the formula Rsense = Vsense / Imax to calculate the optimal value for your application.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 100 nF to 1 uF, but you can use a larger value if you need to ensure that the high-side FET is fully turned on during startup.
  • You can use external voltage supervisors or overvoltage protection (OVP) circuits to protect the L6229PD from overvoltage conditions. For undervoltage protection, you can use a voltage detector or a brown-out detector to reset the device or shut it down when the input voltage falls below a certain threshold.
  • The maximum switching frequency depends on the application and the external components used. However, the L6229PD can operate up to 1 MHz, but you should ensure that the switching frequency is limited to avoid excessive power losses and electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6229PD Overview

Use the download button to access the L6229PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6229, or try a keyword search, such as Motion Control Electronics
