L6234 - STMicroelectronics

Description: STMICROELECTRONICS - L6234 - Triple Half-Bridge for 3-Phase Brushless Motor Controller, 7-42V supply, 52V/5A/3 Outputs, DIP-20

Download L6234 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

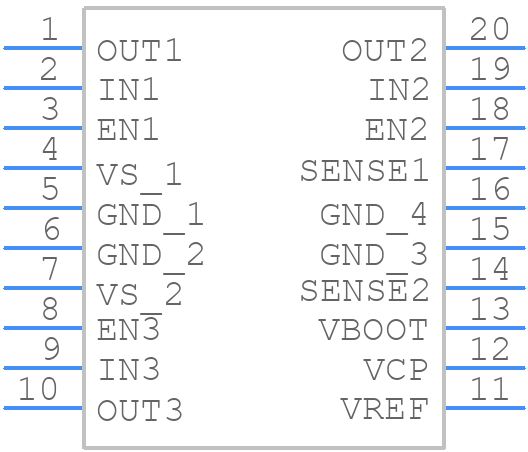

L6234 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

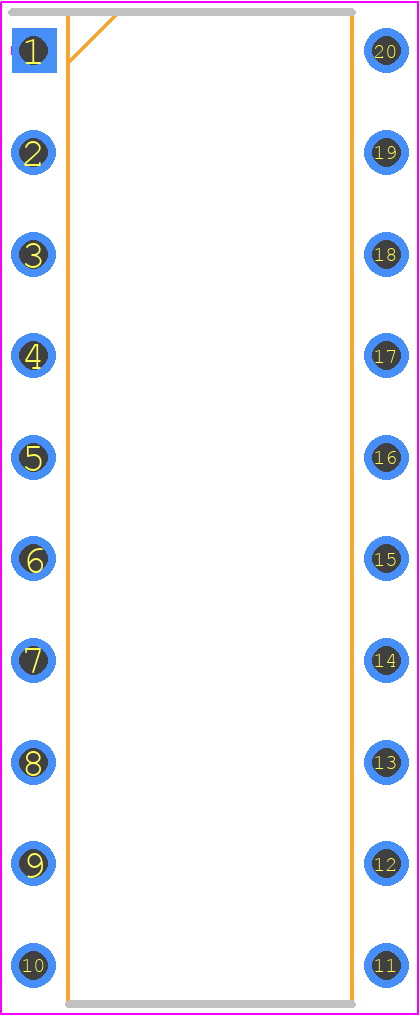

L6234 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - POWERDIP20-
click to zoom
3D Models
L6234 - STMicroelectronics - 3D model - Dual-In-Line Packages - POWERDIP20-
click to zoom

L6234 Details

  • Manufacturer Part Number:

    L6234

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    42 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6234 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the L6234 is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The sense resistor value depends on the desired current limit and the voltage drop across the resistor. A good starting point is to use the formula Rsense = 0.5V / Ilim, where Ilim is the desired current limit.
  • The bootstrap capacitor (Cboot) is used to generate the high-side gate drive voltage. A good starting point for Cboot is 10nF to 22nF, but the optimal value depends on the specific application and switching frequency.
  • Proper thermal management is crucial for the L6234. Ensure good heat dissipation by using a heat sink, thermal interface material, and a PCB design that allows for good airflow. Monitor the junction temperature (TJ) and keep it below 150°C.
  • Keep the high-current paths short and wide, and use a solid ground plane to reduce EMI. Place the sense resistor close to the L6234 and use a Kelvin connection to minimize noise. Avoid routing high-frequency signals near the L6234.
