L6234PD - STMicroelectronics

Description: L6234PD, Motor Driver, 3-Phase Brushless DC Motor, 7 to 52V, 20, 22-Pin PowerSO

Download L6234PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

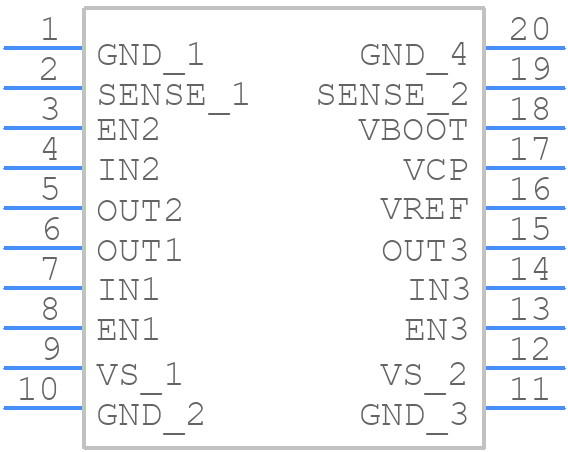

L6234PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

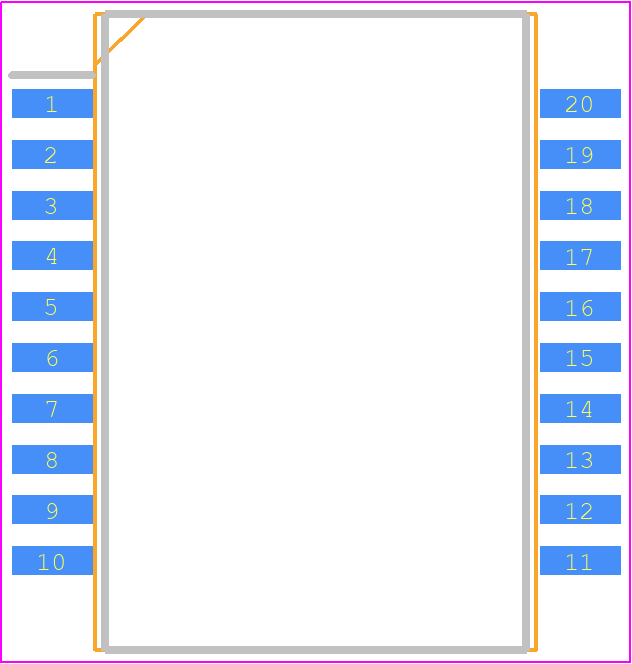

L6234PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20
click to zoom
3D Models
L6234PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20
click to zoom

L6234PD Details

  • Manufacturer Part Number:

    L6234PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    42 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6234PD Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the L6234PD is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The sense resistor value depends on the desired current limit and the voltage supply. A general rule of thumb is to choose a value that sets the current limit to 1.5-2 times the maximum expected current. Consult the datasheet for a more detailed calculation.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. A value of 10-22nF is recommended, but it may need to be adjusted based on the specific application and switching frequency.
  • Ensure good thermal contact between the device and a heat sink or PCB with a thermal conductivity of at least 1W/mK. Keep the device away from heat sources and ensure good airflow. Consult the datasheet for thermal resistance and power dissipation calculations.
  • Keep the high-current paths short and wide, and use a solid ground plane. Place the sense resistor close to the device and use a Kelvin connection. Avoid vias under the device and ensure good thermal vias for heat dissipation.
