L6235N - STMicroelectronics

Description: STMicroelectronics L6235N, BLDC Motor Driver IC, 52 V 2.8A 24-Pin, PDIP

Download L6235N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

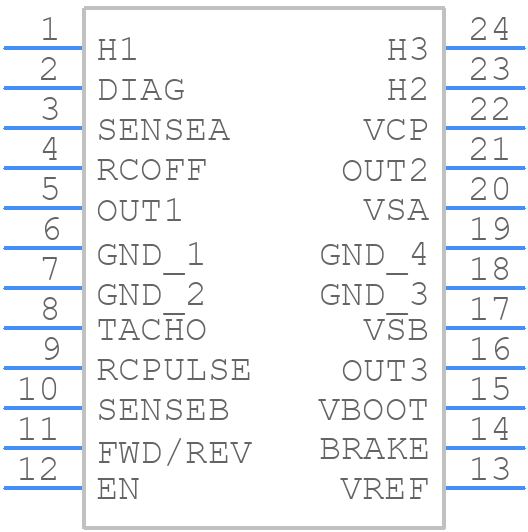

Symbol
L6235N - STMicroelectronics - PCB symbol
click to zoom

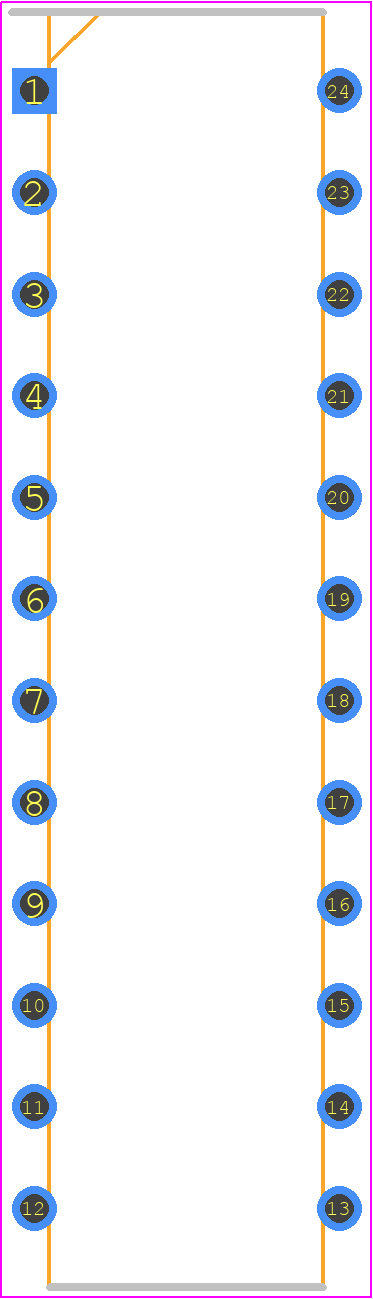

PCB Footprints
L6235N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PowerDIP24
click to zoom
3D Models
L6235N - STMicroelectronics - 3D model - Dual-In-Line Packages - PowerDIP24
click to zoom

L6235N Details

  • Manufacturer Part Number:

    L6235N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.32 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6235N Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the L6235N is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The sense resistor value depends on the desired current limit and the voltage drop across the resistor. A good starting point is to use the formula Rsense = 0.5V / Ilim, where Ilim is the desired current limit.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. A good starting point for choosing the value of CBOOT is 10nF to 22nF, but it may need to be adjusted based on the specific application and switching frequency.
  • Proper thermal management is crucial for the L6235N. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to keep the junction temperature below 150°C.
  • A good PCB layout for the L6235N should minimize the loop area of the high-current paths, keep the sense resistor close to the IC, and use a solid ground plane to reduce EMI.
