L6235QTR - STMicroelectronics

Description: STMICROELECTRONICS - L6235QTR - Motor Driver/Controller, Three Phase DC Brushless, 8V to 52V, 52V/2.5A/1 Output, QFN-EP-48

Download L6235QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

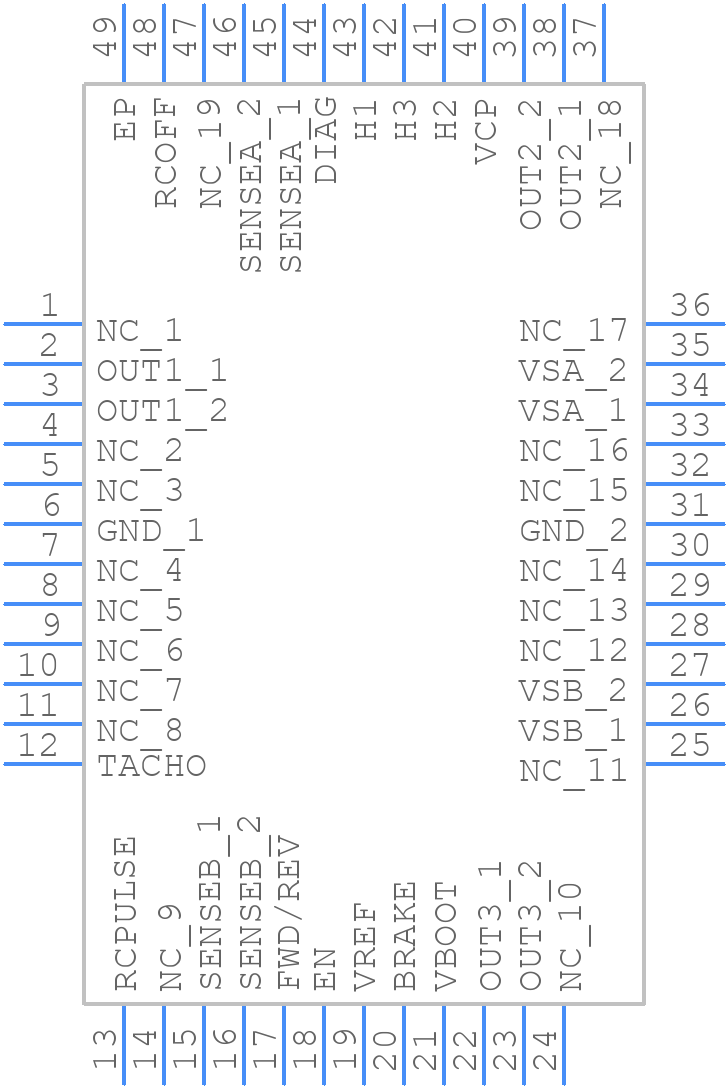

L6235QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6235QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-48 (7 x 7 mm)
click to zoom
3D Models
L6235QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN-48 (7 x 7 mm)
click to zoom

L6235QTR Details

  • Manufacturer Part Number:

    L6235QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, 1 MM HEIGHT, ROHS COMPLIANT, VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VFQFPN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

L6235QTR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the motor is 48V, as specified in the datasheet. However, it's recommended to derate the voltage to ensure reliable operation and to prevent overheating.
  • The sense resistor value depends on the desired current sensing range and the motor current. A general rule of thumb is to choose a sense resistor value that provides a voltage drop of around 0.5-1.5V at the maximum motor current. The datasheet provides a formula to calculate the sense resistor value based on the motor current and desired voltage drop.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage. The recommended value is 10nF to 100nF, with a voltage rating of at least 50V. A larger capacitor value can provide a more stable gate drive voltage, but may increase the turn-on time.
  • To ensure SOA, follow the guidelines in the datasheet for thermal design, voltage derating, and current limiting. Also, make sure to monitor the device temperature and adjust the thermal design accordingly. The L6235QTR has built-in thermal protection, but it's still important to design for thermal safety margins.
  • A good PCB layout for the L6235QTR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the sense resistor close to the device. The datasheet provides a recommended PCB layout and thermal design guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6235QTR Overview

Use the download button to access the L6235QTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6235, or try a keyword search, such as Motion Control Electronics
