L6370L - STMicroelectronics

Description: 9.5 V to 35 V, 2.5 A high-side driver industrial intelligent power switch PowerSO-20

Download L6370L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

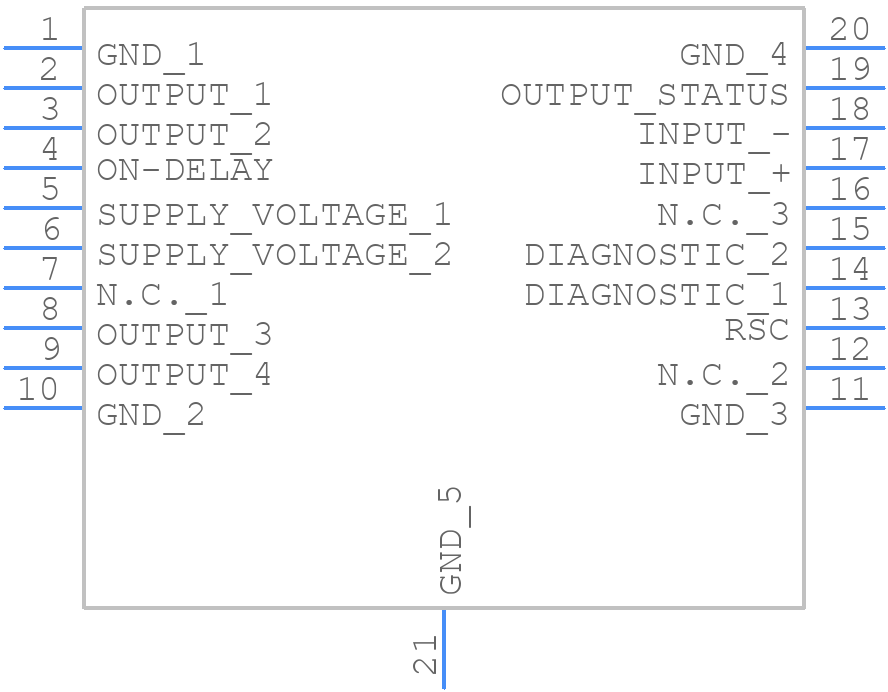

L6370L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6370L - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20-1
click to zoom
3D Models
L6370L - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20-1
click to zoom

L6370L Details

  • Manufacturer Part Number:

    L6370L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    LEAD FREE, MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-XZFM-T11

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Peak Current Limit-Nom:

    3.2 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Equivalence Code:

    SIP11,.1,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    9.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BCD

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

L6370L Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help designers choose the right inductor for their design.
  • The maximum junction temperature of the L6370L is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
  • While the L6370L can operate up to 150°C, it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. STMicroelectronics provides thermal derating curves in the datasheet to help designers determine the maximum operating temperature for their specific application.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which covers common issues and their solutions, such as output voltage regulation, current limiting, and thermal shutdown. Additionally, designers can use oscilloscopes and other debugging tools to analyze the circuit behavior and identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6370L Overview

Use the download button to access the L6370L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6370, or try a keyword search, such as Peripheral Drivers
