- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L6384
- Part Number L6384
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - Minidip-8
- Released Date Aug 23, 2023
- Last Modified Date Aug 24, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
L6384 Details
-
Manufacturer Part Number:
L6384
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
MINI, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
6
L6384 Frequently Asked Questions (FAQs)
-
The maximum voltage that can be applied to the bootstrap capacitor is 15V, as specified in the datasheet. However, it's recommended to keep it below 12V to ensure reliable operation.
-
The minimum bootstrap capacitor value can be calculated using the formula: CBOOT ≥ (VCC / (fSW * RBOOT * VBOOT)), where VCC is the input voltage, fSW is the switching frequency, RBOOT is the bootstrap resistor value, and VBOOT is the bootstrap voltage.
-
The SD (Shutdown) pin is used to disable the L6384 when it's pulled low. To use it, connect the SD pin to a logic signal that goes low when you want to shut down the device. Make sure to use a pull-up resistor to VCC to ensure the pin is high when not driven.
-
The sense resistor value depends on the current sensing range and the desired accuracy. A smaller Rsense value provides higher accuracy but increases power loss. A typical value is 1mΩ to 10mΩ. Consult the datasheet and application notes for more information.
-
The recommended layout and placement involve keeping the L6384 close to the power components, using a symmetrical layout, and minimizing the distance between the bootstrap capacitor and the IC. Consult the datasheet and application notes for more information and guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
L6384 Overview

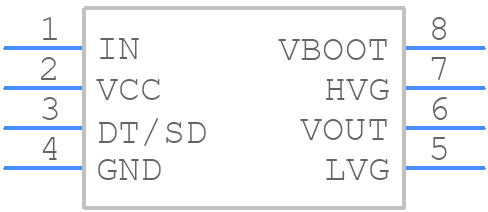

Use the download button to access the L6384 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as MOSFET Drivers
