L6392D - STMicroelectronics

Description: STMicroelectronics L6392D, Dual MOSFET Power Driver, 80mA Half Bridge, 12.5 → 20 V, 14-Pin SOIC

Download L6392D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

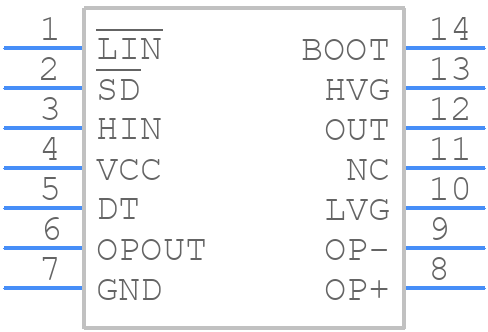

L6392D - STMicroelectronics - PCB symbol
