L6392DTR - STMicroelectronics

Description: High voltage high and low-side driver

Download L6392DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

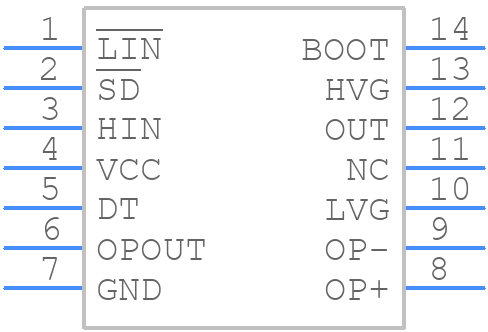

Symbol
L6392DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6392DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-14-1
click to zoom
3D Models
L6392DTR - STMicroelectronics - 3D model - Small Outline Packages - SO-14-1
click to zoom

L6392DTR Details

  • Manufacturer Part Number:

    L6392DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.43 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    12.5 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    580 V

  • Supply Voltage1-Min:

    -9 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

L6392DTR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the L6392DTR is 100 kHz, but it can be adjusted up to 500 kHz with an external resistor.
  • The bootstrap capacitor (CBOOT) value depends on the switching frequency, output voltage, and input voltage. A general rule of thumb is to use a capacitor with a value between 10 nF to 100 nF. However, it's recommended to consult the application note AN4571 from STMicroelectronics for a more detailed calculation.
  • The EN (enable) pin is used to enable or disable the L6392DTR. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement a shutdown function or to synchronize the switching frequency with other devices.
  • The L6392DTR has built-in overcurrent protection (OCP) and overvoltage protection (OVP). However, it's recommended to add external protection components, such as a fuse or a PTC (positive temperature coefficient) thermistor, to ensure the device is protected from excessive currents and voltages.
  • To ensure proper operation and minimize electromagnetic interference (EMI), it's recommended to follow a good PCB design practice, such as keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. Consult the application note AN4571 from STMicroelectronics for more detailed guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6392DTR Overview

Use the download button to access the L6392DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6392, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
