L6470HTR - STMicroelectronics

Description: Fully integrated microstepping motor driver with motion engine and SPI

Download L6470HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

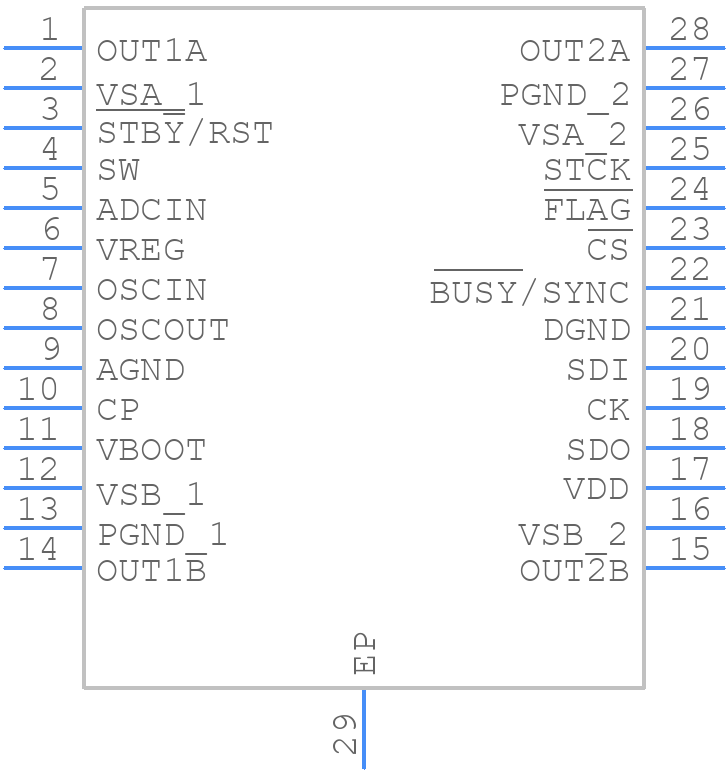

Symbol
L6470HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6470HTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP28_1
click to zoom
3D Models
L6470HTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP28_1
click to zoom

L6470HTR Details

  • Manufacturer Part Number:

    L6470HTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

L6470HTR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The value of R Sense should be chosen based on the maximum current rating of the motor and the desired current sense accuracy. A good starting point is to use a value between 0.1 ohm and 1 ohm, and then adjust based on the specific application requirements.
  • The ENN pin is an active-low enable input that allows the device to be enabled or disabled. When ENN is low, the device is enabled, and when ENN is high, the device is disabled. This pin can be used to shut down the device when not in use to reduce power consumption.
  • The L6470HTR is a flexible device that can be configured for different motor types using the SPI interface. The device can be configured for stepper, DC, or brushless motor operation by setting the appropriate registers and configuration bits.
  • The maximum frequency of the PWM output is 100 kHz. The PWM frequency can be set using the PWM frequency selection bits in the configuration registers.
