L6470PDTR - STMicroelectronics

Description: Fully integrated microstepping motor driver with motion engine and SPI

Download L6470PDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

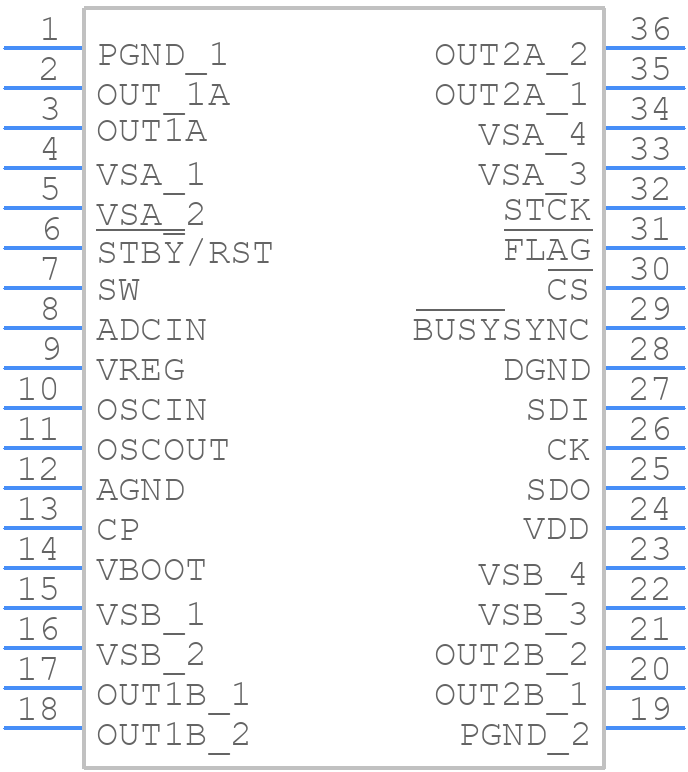

Symbol
L6470PDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6470PDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - POWERSO36
click to zoom
3D Models
L6470PDTR - STMicroelectronics - 3D model - Small Outline Packages - POWERSO36
click to zoom

L6470PDTR Details

  • Manufacturer Part Number:

    L6470PDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6470PDTR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The value of the current sense resistors (R Sense) depends on the maximum current rating of the motor and the desired current sense accuracy. A good starting point is to use a value between 0.1 ohm and 1 ohm, and then adjust based on the specific application requirements.
  • The ENN pin is an active-low enable input that allows the user to enable or disable the device. When ENN is low, the device is enabled, and when ENN is high, the device is disabled. This pin can be used to implement a shutdown or standby mode in the application.
  • To configure the L6470PDTR for microstepping mode, the user needs to set the MRES pin to the desired microstepping resolution (e.g., 1/2, 1/4, 1/8, etc.) and ensure that the SYNC pin is connected to the clock signal. The device will then automatically adjust the step size and current control to achieve the desired microstepping resolution.
  • The recommended layout for the L6470PDTR involves placing the device on a multi-layer PCB with a solid ground plane and using thermal vias to dissipate heat. The device should be placed near the motor and the sense resistors should be placed close to the device. A heat sink may be required for high-current applications.
