L6474PD - STMicroelectronics

Description: STMICROELECTRONICS - L6474PD - Motor Driver, Stepper, 8V to 45V supply, 3A/2 Outputs, PowerSO-36

Download L6474PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

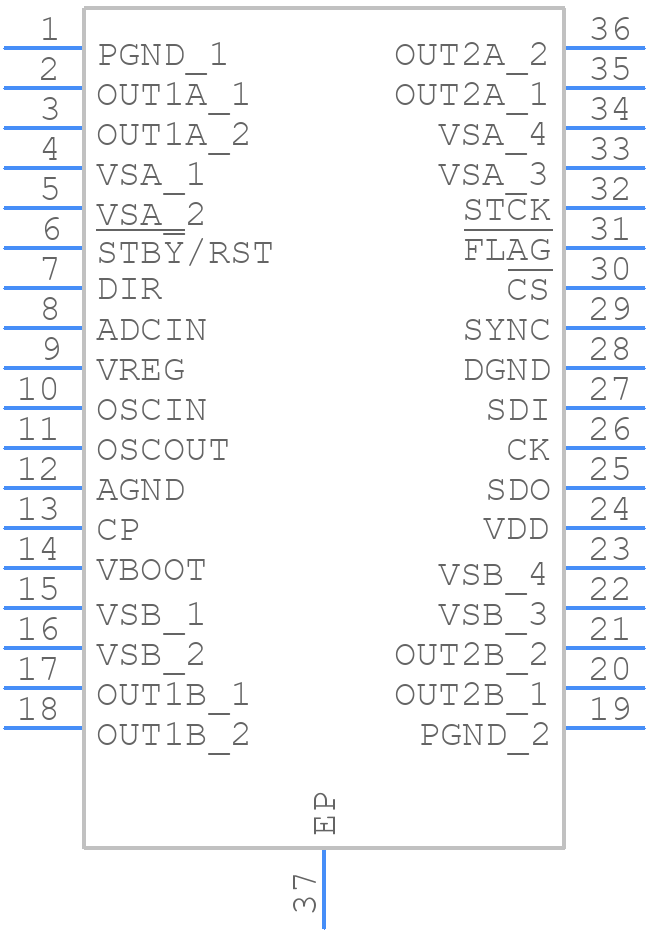

Symbol
L6474PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6474PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - L6474PD
click to zoom
3D Models
L6474PD - STMicroelectronics - 3D model - Small Outline Packages - L6474PD
click to zoom

L6474PD Details

  • Manufacturer Part Number:

    L6474PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Additional Feature:

    OTHER NOMINAL SUPPLY VOLTAGE IS 5V AND MOTOR SUPPLY VOLTAGE IS 8V TO 45V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current-Max:

    7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    0.65 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

L6474PD Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The current sense resistors (R Sense) should be chosen based on the maximum current rating of the motor and the desired current sense threshold. A good starting point is to use a 0.1 ohm resistor for currents up to 2A and a 0.05 ohm resistor for currents up to 4A.
  • The ENN pin is an active-low enable input that allows the user to enable or disable the L6474PD. When ENN is low, the device is enabled, and when ENN is high, the device is disabled. This pin can be used to shut down the motor driver during idle periods to reduce power consumption.
  • The L6474PD can be configured for half-bridge or full-bridge operation by setting the BRG pin high or low, respectively. For half-bridge operation, BRG should be tied to VCC, and for full-bridge operation, BRG should be tied to GND.
  • The DIAG/FLAG pin is an open-drain output that indicates the occurrence of a fault condition, such as overcurrent, overtemperature, or undervoltage. The pin can be connected to a microcontroller or other logic circuit to detect and respond to fault conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6474PD Overview

Use the download button to access the L6474PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6474, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
