L6480H - STMicroelectronics

Description: Motor/Motion/Ignition Controllers & Drivers cSPIN 7.5V to 85V N-Ch INT Motion SPI

Download L6480H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

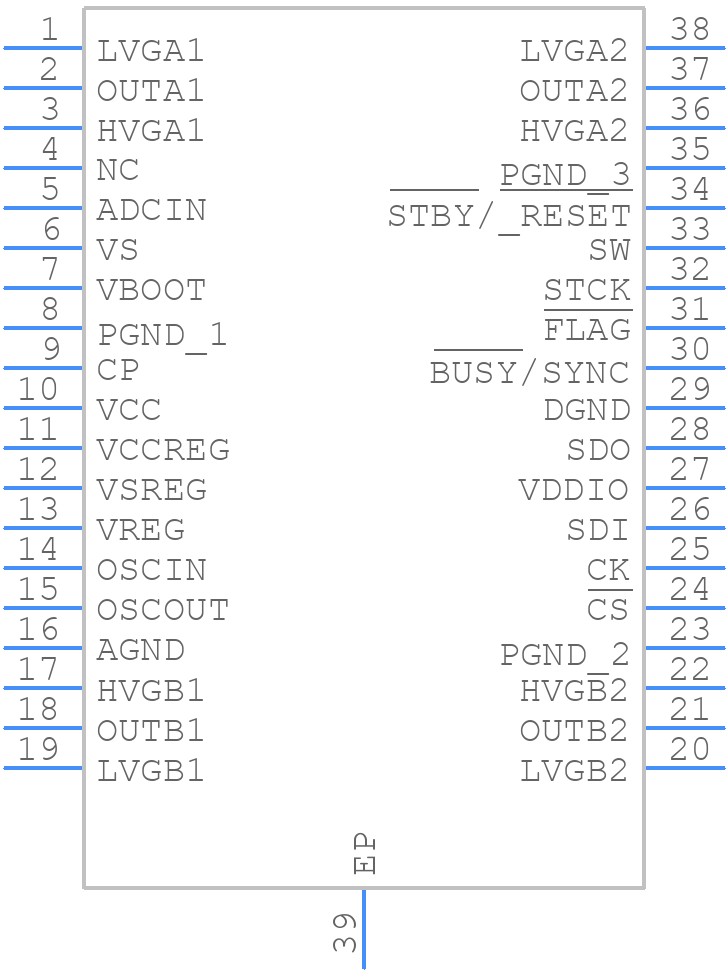

Symbol
L6480H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6480H - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP38
click to zoom
3D Models
L6480H - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP38
click to zoom

L6480H Details

  • Manufacturer Part Number:

    L6480H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

L6480H Frequently Asked Questions (FAQs)

  • The L6480H can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • STMicroelectronics provides a dedicated evaluation board and a comprehensive user manual to help you configure the L6480H for your specific application. You can also consult the application notes and design guides available on the STMicroelectronics website.
  • The L6480H can deliver up to 2A of output current, making it suitable for a wide range of applications, including motor control, power supplies, and industrial automation.
  • The L6480H has built-in overvoltage and undervoltage protection, but you should also consider adding external protection components, such as TVS diodes or voltage regulators, to ensure the device is protected from voltage transients and spikes.
  • Yes, the L6480H is designed to operate in noisy environments and has built-in noise filtering and immunity to electromagnetic interference (EMI). However, you should still follow proper PCB design and layout practices to minimize noise coupling and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6480H Overview

Use the download button to access the L6480H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6480, or try a keyword search, such as Motion Control Electronics
