L6480HTR - STMicroelectronics

Description: Fully integrated microstepping motor controller with motion engine and SPI

Download L6480HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

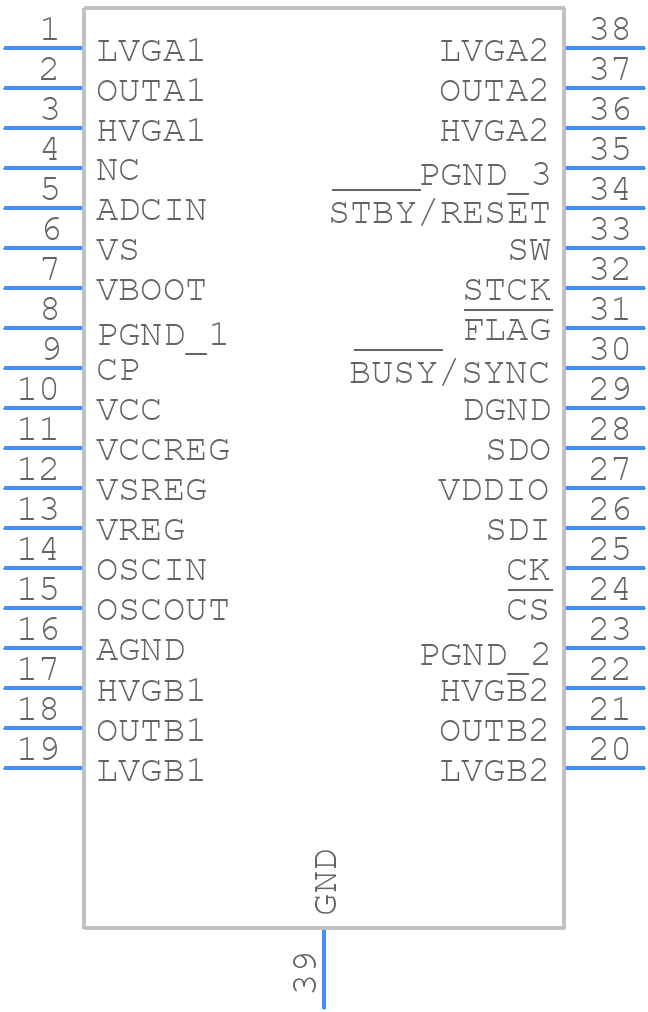

L6480HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6480HTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-38
click to zoom
3D Models
L6480HTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP-38
click to zoom

L6480HTR Details

  • Manufacturer Part Number:

    L6480HTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

L6480HTR Frequently Asked Questions (FAQs)

  • The L6480HTR can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • STMicroelectronics provides a dedicated evaluation board and software tools to help engineers configure and optimize the L6480HTR for their specific application.
  • The typical quiescent current consumption of the L6480HTR is around 5mA, making it suitable for battery-powered applications.
  • Yes, the L6480HTR can operate with input voltages up to 60V, making it suitable for high-voltage applications such as industrial power supplies and motor control systems.
  • The L6480HTR has built-in overvoltage and undervoltage protection, but additional external protection circuits can be added to ensure the device is protected from extreme voltage conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6480HTR Overview

Use the download button to access the L6480HTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6480, or try a keyword search, such as Motion Control Electronics

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
