Part Image

L6482H - STMicroelectronics

Description: STMICROELECTRONICS - L6482H - MOTOR CONTROLLER, MICROSTPNG, 38HTSSOP

Download L6482H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

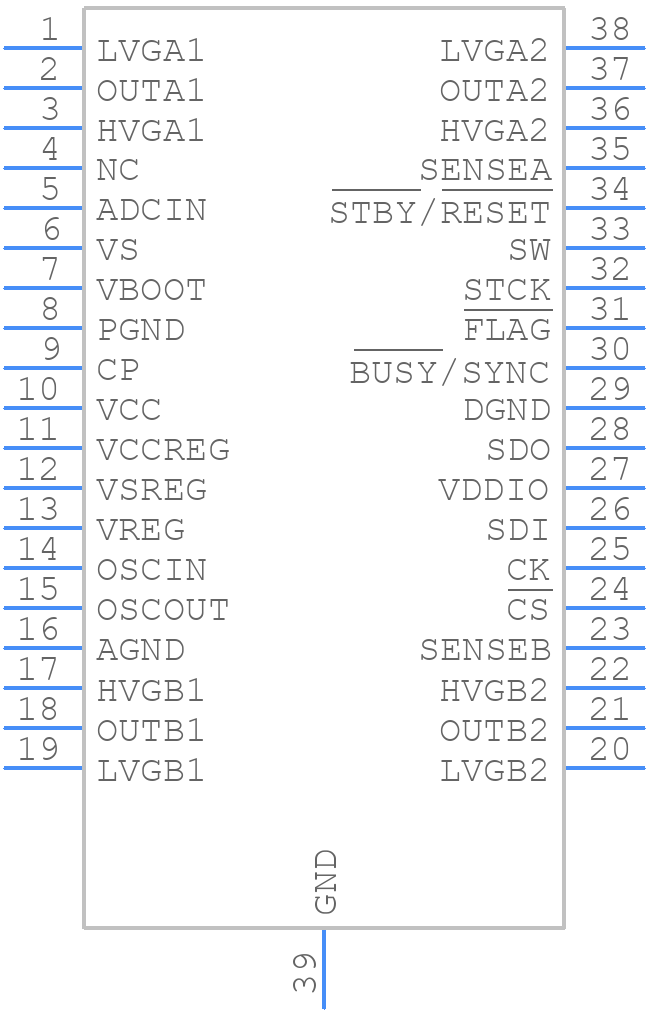

L6482H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6482H - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-38
click to zoom
3D Models
L6482H - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP-38
click to zoom

L6482H Details

  • Manufacturer Part Number:

    L6482H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

L6482H Frequently Asked Questions (FAQs)

  • The L6482H can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • STMicroelectronics provides a dedicated evaluation board and a comprehensive user manual to help you configure the L6482H for your specific application. You can also consult with ST's technical support team for guidance.
  • The L6482H can deliver up to 2A of output current, making it suitable for a wide range of applications, including motor control and power supplies.
  • The L6482H has built-in overvoltage and undervoltage protection, but you should also consider adding external protection circuitry, such as a voltage supervisor, to ensure the device is protected from voltage transients and faults.
  • Yes, the L6482H has built-in noise filtering and is designed to operate in noisy environments. However, you should still follow proper PCB design and layout practices to minimize noise coupling and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6482H Overview

Use the download button to access the L6482H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6482, or try a keyword search, such as Motion Control Electronics
