L6498LD - STMicroelectronics

Description: High voltage high and low-side 2 A gate driver

Download L6498LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

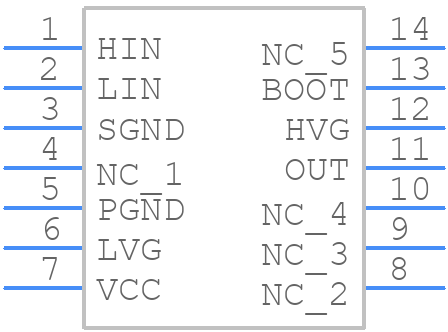

L6498LD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6498LD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
L6498LD - STMicroelectronics - 3D model - Small Outline Packages - SO14
click to zoom

L6498LD Details

  • Manufacturer Part Number:

    L6498LD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.12 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    3.9 mm

L6498LD Frequently Asked Questions (FAQs)

  • The L6498LD can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The L6498LD requires a proper power-up sequence, including a slow ramp-up of the input voltage (VIN) to ensure the internal voltage regulators are enabled correctly. A minimum input voltage of 6.5V is required for proper operation.
  • A good layout practice is to keep the power traces short and wide, and to use a solid ground plane to reduce EMI. Place decoupling capacitors close to the device and use a low-ESR capacitor for the output filter. Avoid routing sensitive signals near the device's switching nodes.
  • Use an oscilloscope to monitor the input and output voltages, as well as the switching nodes. Check for proper power-up sequencing, ensure the input voltage is within the recommended range, and verify that the output filter components are correctly sized and placed.
  • Yes, the L6498LD is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, layout, and design guidelines to ensure the device operates within its specified parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6498LD Overview

Use the download button to access the L6498LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6498, or try a keyword search, such as MOSFET Drivers
