L6506 - STMicroelectronics

Description: L6506, Stepper Motor Controller, 4.5 → 7 V, 18-Pin PDIP

Download L6506 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

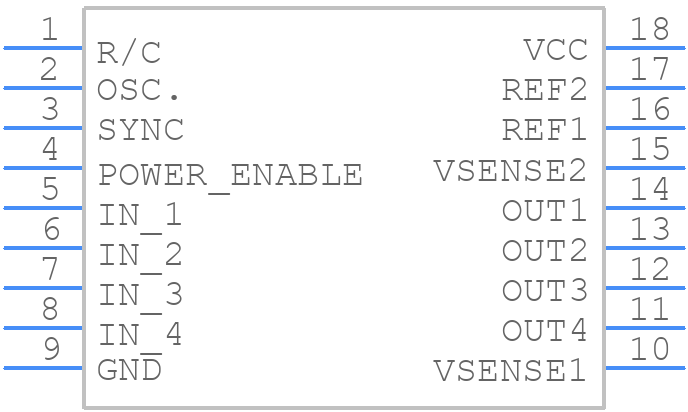

L6506 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

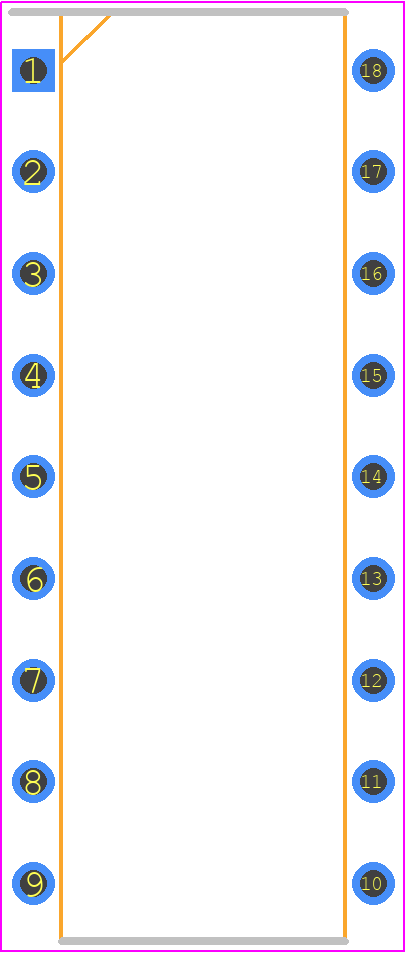

L6506 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
L6506 - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

L6506 Details

  • Manufacturer Part Number:

    L6506

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.93 mm

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

L6506 Frequently Asked Questions (FAQs)

  • The L6506 can handle input voltages up to 40V, but it's recommended to keep it below 30V for optimal performance and reliability.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage for the internal MOSFET. It's essential for proper operation and should be chosen based on the specific application requirements.
  • Ensure good thermal design, including a suitable heat sink, and follow the thermal management guidelines in the datasheet. Monitor the junction temperature and adjust the design as needed to prevent overheating.
  • Yes, the L6506 can be used in a synchronous rectification configuration, which can improve efficiency. However, this requires additional external components and careful design consideration.
