- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L6566BHTR
- Part Number L6566BHTR
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-16N-1
- Released Date Aug 27, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L6566BHTR Details
-
Manufacturer Part Number:
L6566BHTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
ROHS COMPLIANT, SOP-16
-
Pin Count:
16
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
STMicroelectronics
L6566BHTR Frequently Asked Questions (FAQs)
-
The L6566BHTR can handle input voltages up to 30V, but it's recommended to keep it below 28V for reliable operation.
-
The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
-
The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 10nF to 22nF, but it may need to be adjusted based on the specific application requirements and the value of the high-side MOSFET.
-
To ensure stability, make sure to follow the layout guidelines, use a low-ESR output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VCC pin and GND. Additionally, ensure that the input voltage is within the recommended range and the output voltage is within the specified tolerance.
-
Yes, the L6566BHTR can be used in a synchronous rectification configuration. However, it requires additional external components and careful design to ensure proper operation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L6566BHTR Overview

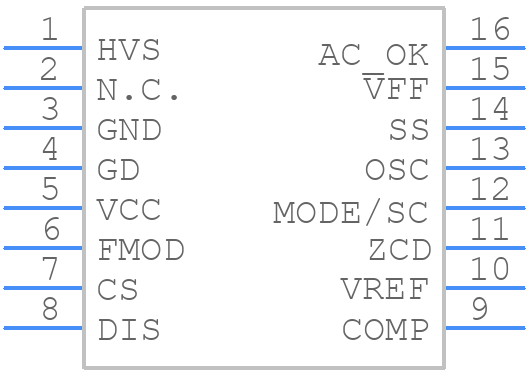

Use the download button to access the L6566BHTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6566,
or try a keyword search, such as Switching Regulator or Controllers
