Part Image

L6566BTR - STMicroelectronics

Description: Switching Controllers MultiMode Controller for SMPS

Download ECAD Model

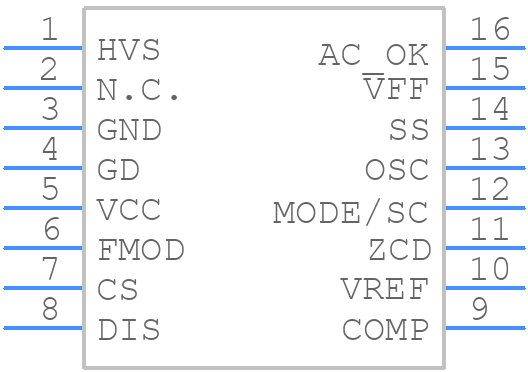

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

L6566BTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom

3D Models

L6566BTR - STMicroelectronics  - 3D model - Small Outline Packages - SO-16N
click to zoom

L6566BTR Details

  • Manufacturer Part Number:

    L6566BTR

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    0.89

  • Samacsys Modified On:

    2022-07-08 14:47:23

  • YTEOL:

    7.3

  • Additional Feature:

    ALSO CONFIGURE IN RESONANT CONTROL

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    23 V

  • Input Voltage-Min:

    10.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Switching Regulator or Controllers

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    900 kHz

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

L6566BTR Overview

Use the download button to access the L6566BTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6566, or try a keyword search, such as Switching Regulator or Controllers
