L6571AD - STMicroelectronics

Description: L6571AD, Dual MOSFET Power Driver 0.275A Half Bridge, 10 → 16.6 V, 8-Pin SOIC

Download L6571AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

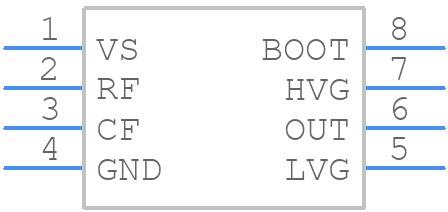

Symbol
L6571AD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6571AD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-8_2
click to zoom
3D Models
L6571AD - STMicroelectronics - 3D model - Small Outline Packages - ST SO-8_2
click to zoom

L6571AD Details

  • Manufacturer Part Number:

    L6571AD

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.275 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    16.6 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    500 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

L6571AD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4393, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The choice of transformer depends on the specific application requirements, such as output voltage, current, and power rating. STMicroelectronics provides a transformer selection guide in the application note AN4393, which includes formulas and guidelines for selecting the right transformer.
  • The L6571AD has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • The L6571AD has a built-in OVP feature that can be enabled by connecting a resistor between the VCC pin and the OVP pin. The OVP threshold voltage can be set by selecting the appropriate resistor value according to the formula provided in the datasheet.
  • Yes, the L6571AD is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
