L6585D - STMicroelectronics

Description: L6585D, Lighting Ballast Driver, 20-Pin, SOIC

Download L6585D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

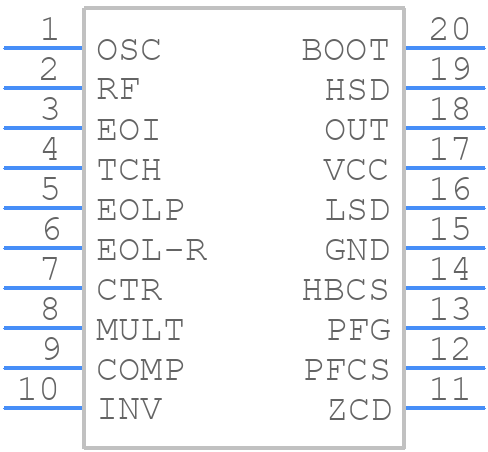

L6585D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6585D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20
click to zoom
3D Models
L6585D - STMicroelectronics - 3D model - Small Outline Packages - SO-20
click to zoom

L6585D Details

  • Manufacturer Part Number:

    L6585D

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH CURRENT MODE

  • Analog IC - Other Type:

    POWER FACTOR AND FLUORESCENT LIGHT CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    250 kHz

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L6585D Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
  • The maximum junction temperature (Tj) for the L6585D is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
  • While the L6585D can operate up to 150°C, it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. STMicroelectronics provides thermal derating curves in the datasheet to help engineers design for high-temperature applications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4101, which includes common issues and their solutions, such as checking the PCB layout, component values, and input/output voltage levels. Additionally, engineers can use simulation tools and oscilloscopes to debug and analyze the circuit behavior.
