L6725 - STMicroelectronics

Description: L6725, PWM Voltage Mode Controller, 30000 mA, 16-Pin SO N

Download L6725 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

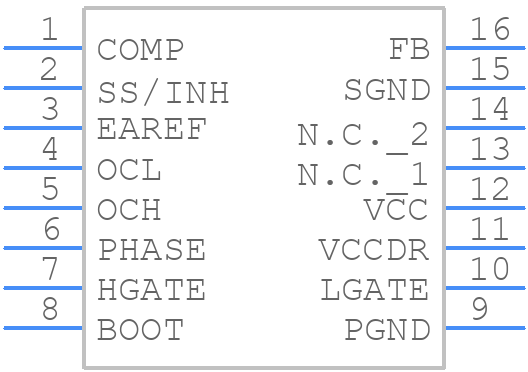

Symbol
L6725 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6725 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
L6725 - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

L6725 Details

  • Manufacturer Part Number:

    L6725

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L6725 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
  • The maximum junction temperature of the L6725 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and minimize thermal stress.
  • Yes, the L6725 is suitable for high-reliability applications, such as automotive, industrial, and medical devices. STMicroelectronics provides a range of reliability and quality certifications, including AEC-Q100 and IATF 16949, to ensure the device meets the required standards.
  • STMicroelectronics provides a range of resources to help troubleshoot issues with the L6725, including application notes, FAQs, and technical support. Engineers can also use tools such as oscilloscopes and logic analyzers to debug their design and identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6725 Overview

Use the download button to access the L6725 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
