L6725A - STMicroelectronics

Description: L6725A, PWM Voltage Mode Controller, 30000 mA, 16-Pin SO N

Download L6725A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

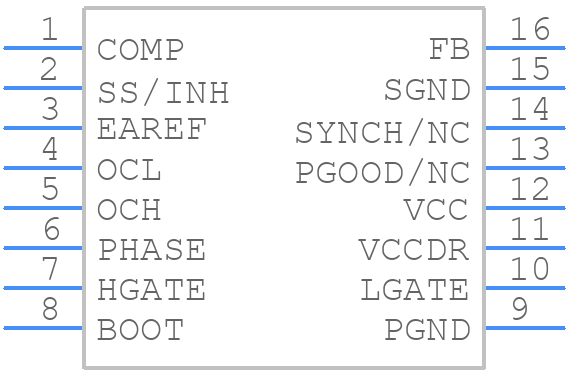

L6725A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6725A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
L6725A - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

L6725A Details

  • Manufacturer Part Number:

    L6725A

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L6725A Frequently Asked Questions (FAQs)

  • The maximum output current of the L6725A in high-voltage mode is 1.5 A, but it is limited by the internal power dissipation and the external components used.
  • The output voltage of the L6725A can be set by connecting a resistive divider between the output pin and the ground, and connecting the feedback pin to the center tap of the divider. The ratio of the resistors determines the output voltage.
  • The EN (Enable) pin on the L6725A is used to enable or disable the device. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output is turned off.
  • The L6725A has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional external components such as zener diodes or voltage supervisors can be used to provide extra protection against overvoltage and undervoltage conditions.
  • The thermal shutdown temperature of the L6725A is typically around 150°C. When the device temperature exceeds this threshold, the device shuts down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6725A Overview

Use the download button to access the L6725A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6725, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
