L6727TR - STMicroelectronics

Description: L6727TR, DC-DC Controller, 13.2 V, PWM Controller, 8-Pin, SOIC

Download L6727TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

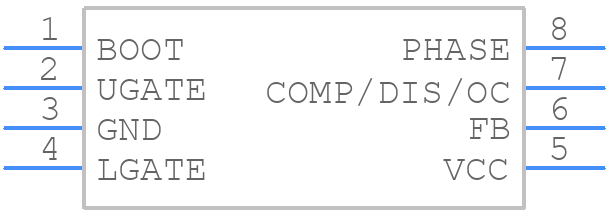

L6727TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6727TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST SO-8_2
click to zoom
3D Models
L6727TR - STMicroelectronics - 3D model - Small Outline Packages - ST SO-8_2
click to zoom

L6727TR Details

  • Manufacturer Part Number:

    L6727TR

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    350 kHz

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

L6727TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
  • The maximum junction temperature of the L6727TR is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
  • While the L6727TR can operate up to 150°C, it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. Engineers should consult the datasheet and application notes for guidance on using the device in high-temperature applications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4101, which covers common issues and their solutions, such as output voltage regulation, oscillation, and overcurrent protection. Engineers can also consult the datasheet and contact STMicroelectronics' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6727TR Overview

Use the download button to access the L6727TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6727, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
