L6924UTR - STMicroelectronics

Description: USB compatible battery charger system with integrated power switch for Li-Ion/Li-Polymer

Download L6924UTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

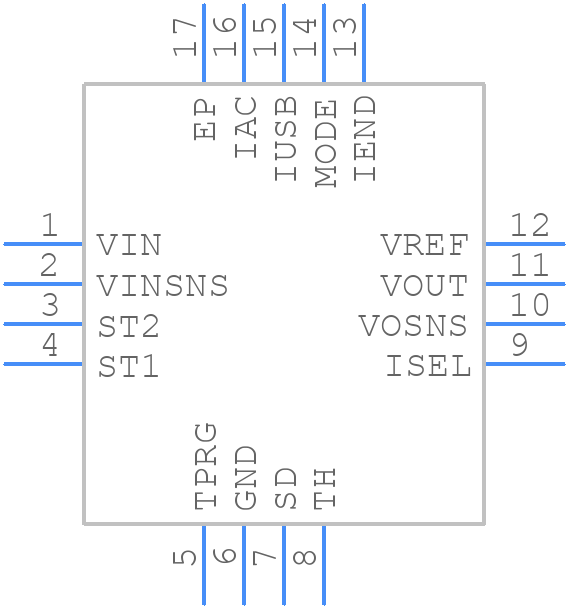

L6924UTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6924UTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L6924UTR
click to zoom
3D Models
L6924UTR - STMicroelectronics - 3D model - Quad Flat No-Lead - L6924UTR
click to zoom

L6924UTR Details

  • Manufacturer Part Number:

    L6924UTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    2.5 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

L6924UTR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L6924UTR is 28V, but it's recommended to keep it below 24V for reliable operation.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the IC and use a good quality PCB layout.
  • The minimum input voltage required for the L6924UTR to operate is 6.5V, but it's recommended to keep it above 7V for reliable operation.
  • The L6924UTR is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation.
  • The output voltage of the L6924UTR can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the internal reference voltage (1.25V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6924UTR Overview

Use the download button to access the L6924UTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6924, or try a keyword search, such as Power Management Circuits
