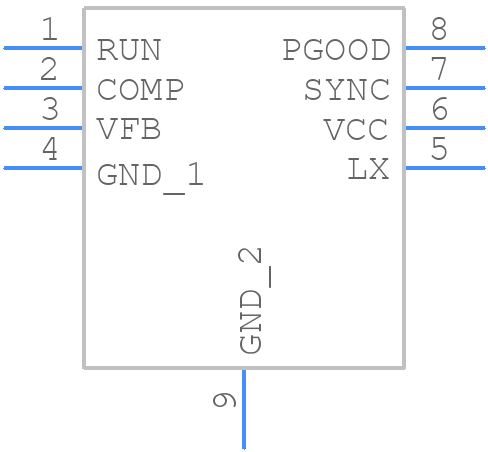

L6926Q1TR - STMicroelectronics

L6926Q1TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
• How do I select the right output capacitor for my application?
  The output capacitor selection depends on the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value between 10uF to 47uF, and a voltage rating at least 1.5 times the output voltage. Additionally, consider the ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) of the capacitor to ensure it can handle the switching frequency and output current.
• What is the maximum ambient temperature for reliable operation?
  While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general guideline, it's recommended to keep the ambient temperature below 125°C to ensure reliable operation and minimize thermal stress.
• How do I ensure electromagnetic compatibility (EMC) in my design?
  To ensure EMC, follow the guidelines in the application note AN2866, which provides recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
• What is the recommended input capacitor type and value for this regulator?
  A ceramic or film capacitor with a value between 1uF to 10uF is recommended for the input capacitor. The capacitor should have a voltage rating at least 1.5 times the input voltage and be placed close to the regulator's input pins to minimize noise and ensure stable operation.
