L6932D1.8TR - STMicroelectronics

Description: High Performance 2A ULDO Linear Regulator

Download L6932D1.8TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

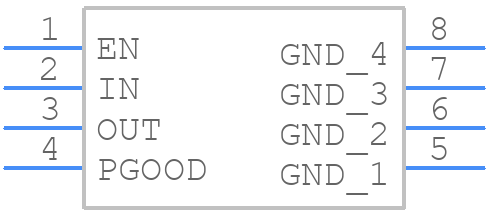

Symbol
L6932D1.8TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6932D1.8TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 package-
click to zoom
3D Models
L6932D1.8TR - STMicroelectronics - 3D model - Small Outline Packages - SO-8 package-
click to zoom

L6932D1.8TR Details

  • Manufacturer Part Number:

    L6932D1.8TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    2.7 V

  • Input Voltage Absolute-Max:

    14.5 V

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.005%

  • Load Regulation-Max:

    0.015%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -25 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    1.818 V

  • Output Voltage1-Min:

    1.782 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    3.9 mm

L6932D1.8TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure stability and reliability, it's essential to follow the recommended operating conditions, including input voltage, output current, and temperature range. Additionally, a proper decoupling capacitor (e.g., 10uF ceramic capacitor) should be placed close to the device, and the input voltage should be filtered to reduce noise and ripple.
  • The maximum allowed voltage drop across the L6932D1.8TR is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may lead to reduced performance, increased power consumption, or even device failure.
  • While the L6932D1.8TR is rated for operation up to 150°C, it's essential to consider the derating curves and thermal management in high-temperature applications. The device's performance and reliability may be affected above 125°C, and proper heat sinking and thermal design are crucial to ensure reliable operation.
  • To troubleshoot issues with the L6932D1.8TR, start by verifying the input voltage, output current, and temperature range. Check for proper decoupling, filtering, and thermal management. Use oscilloscopes or logic analyzers to monitor the device's behavior and identify potential issues. Consult STMicroelectronics' application notes and technical support resources for further guidance.
