L717HDCH62POL2RM5 - Amphenol

Description: AMPHENOL COMMUNICATIONS SOLUTIONS - L717HDCH62POL2RM5 - D Sub Connector, High Density, Plug, HD, 62 Contacts, DC, Solder

Download L717HDCH62POL2RM5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L717HDCH62POL2RM5 - Amphenol - PCB symbol
click to zoom
PCB Footprints

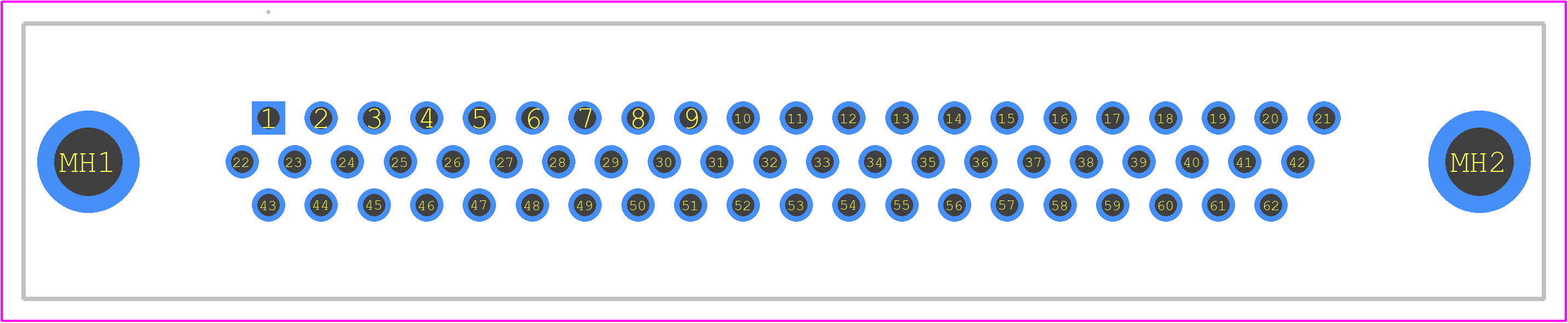

L717HDCH62POL2RM5 - Amphenol PCB footprint - Other - Other - L717HDCH62POL2RM5-2
click to zoom
3D Models
L717HDCH62POL2RM5 - Amphenol - 3D model - Other - L717HDCH62POL2RM5-2
click to zoom

L717HDCH62POL2RM5 Details

  • Manufacturer Part Number:

    L717HDCH62POL2RM5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH

  • Contact Finish Termination:

    GOLD FLASH

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    62

  • UL Flammability Code:

    94V-0

L717HDCH62POL2RM5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the L717HDCH62POL2RM5 is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-55302F, which includes vibration testing. However, it's essential to follow proper installation and mounting procedures to ensure the connector's performance.
  • The operating temperature range for the L717HDCH62POL2RM5 is -55°C to 125°C (-65°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the L717HDCH62POL2RM5 is designed to withstand harsh environments, including exposure to salt spray and moisture. It meets the requirements of MIL-DTL-55302F, which includes testing for salt spray and humidity.
  • The L717HDCH62POL2RM5 is designed to be used with specific cable types and sizes. It's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility with your chosen cable. Using an incompatible cable may affect the connector's performance and reliability.
