Part Image

L717SDCH37POL2RM5C309 - Amphenol

Description: D-Sub Standard Connectors 37P Sz C Std Density Pin Strt PCB 30u

Download L717SDCH37POL2RM5C309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L717SDCH37POL2RM5C309 - Amphenol - PCB symbol
click to zoom

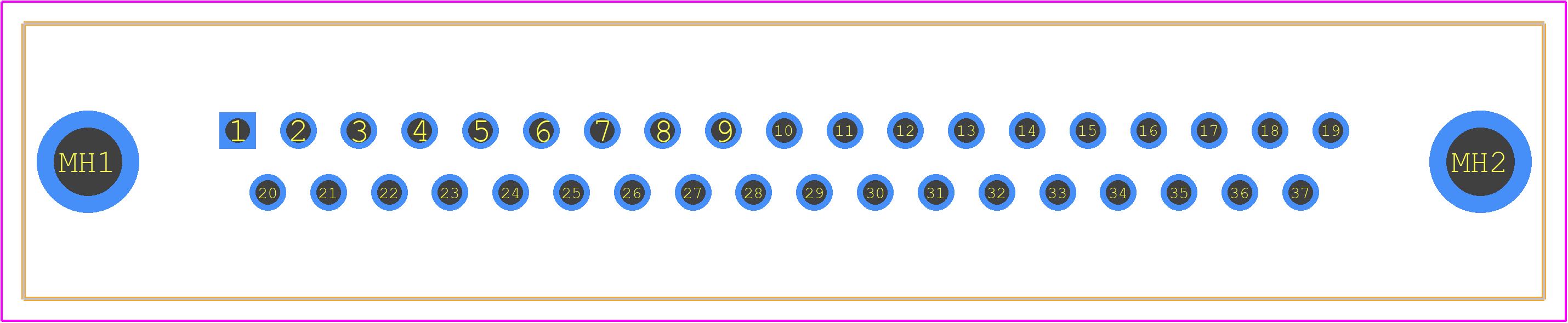

PCB Footprints
L717SDCH37POL2RM5C309 - Amphenol PCB footprint - Other - Other - L717SDCH37POL2RM5C309-4
click to zoom
3D Models
L717SDCH37POL2RM5C309 - Amphenol - 3D model - Other - L717SDCH37POL2RM5C309-4
click to zoom

L717SDCH37POL2RM5C309 Details

  • Manufacturer Part Number:

    L717SDCH37POL2RM5C309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

L717SDCH37POL2RM5C309 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in Amphenol's application notes or by contacting their technical support.
  • Yes, the L717SDCH37POL2RM5C309 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302F, which includes sinusoidal vibration testing up to 20 G's.
  • The maximum operating temperature range for the L717SDCH37POL2RM5C309 is -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, the L717SDCH37POL2RM5C309 is designed to operate in harsh environments. It has a sealed construction and meets the requirements of MIL-DTL-55302F for resistance to moisture, salt spray, and other environmental factors.
  • It's not recommended to use the L717SDCH37POL2RM5C309 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed. Amphenol recommends using their mating connectors to ensure optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L717SDCH37POL2RM5C309 Overview

Use the download button to access the L717SDCH37POL2RM5C309 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L717S, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
