L717SDDH50POL2C309 - Amphenol

Description: Dsub, Stamped Signal 3A, Straight PCB Thru Hole, 50 Pin, Flash Gold, Bright Tin Shell+Grounding Dimples, 4-40 Removable Front Screwlock, Standoff 6.0mm (0.236"), With Boardlock 4.2mm (0.165")

Download L717SDDH50POL2C309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L717SDDH50POL2C309 - Amphenol - PCB symbol
click to zoom
PCB Footprints

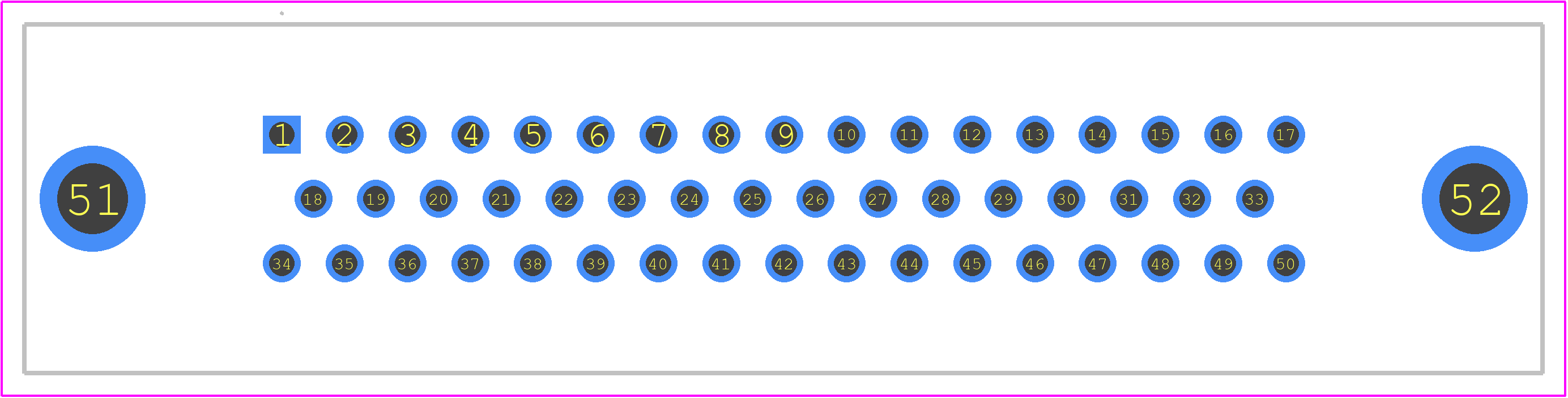

L717SDDH50POL2C309 - Amphenol PCB footprint - Other - Other - L717SDDH50POL2C309-1
click to zoom
3D Models
L717SDDH50POL2C309 - Amphenol - 3D model - Other - L717SDDH50POL2C309-1
click to zoom

L717SDDH50POL2C309 Details

  • Manufacturer Part Number:

    L717SDDH50POL2C309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: MIL-C-24308

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

L717SDDH50POL2C309 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw threads is typically between 0.5 to 1.5 Nm (7 to 13 in-lbs), but it's best to consult the Amphenol application notes or contact their technical support for specific guidance.
  • Yes, the L717SDDH50POL2C309 is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and screw torque to maintain the connector's integrity. Consult Amphenol's vibration and shock testing data for more information.
  • The L717SDDH50POL2C309 is rated for operation in temperatures ranging from -55°C to +125°C (-133°F to +257°F), but derating may be necessary for high-temperature applications. Consult the datasheet or Amphenol's technical support for specific guidance.
  • The L717SDDH50POL2C309 has a rugged design and is suitable for use in harsh environments, but it's essential to ensure proper sealing and protection against ingress. Consult Amphenol's environmental testing data and application notes for more information.
  • It's not recommended to mate the L717SDDH50POL2C309 with a connector from another manufacturer, as compatibility and performance cannot be guaranteed. Use Amphenol's recommended mating connectors to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L717SDDH50POL2C309 Overview

Use the download button to access the L717SDDH50POL2C309 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L717S, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
