L717TSEH09POL2C309 - Amphenol

Description: Dsub, Stamped Signal 3A, Straight PCB Thru Hole Low Profile, Height=6.02mm (.237in), 9 Pin, Bright Tin Shell+Grounding Dimples, 0.76μm (30μin) Gold, 4-40 Threaded Rear Insert

Download L717TSEH09POL2C309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L717TSEH09POL2C309 - Amphenol - PCB symbol
click to zoom

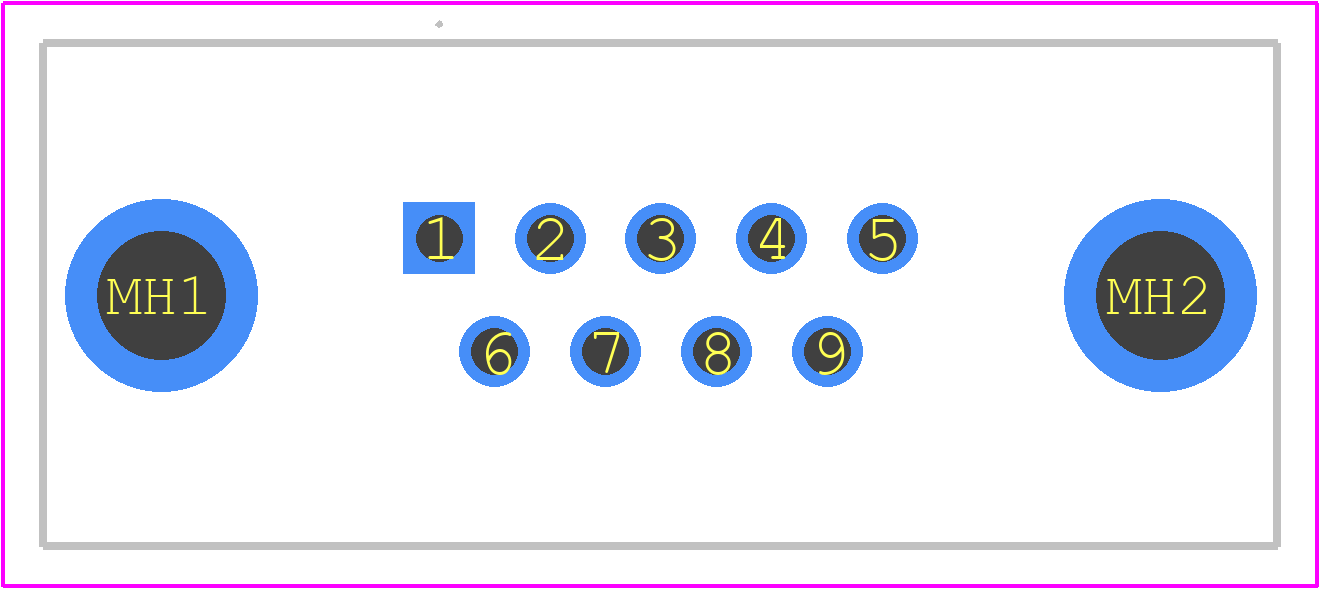

PCB Footprints
L717TSEH09POL2C309 - Amphenol PCB footprint - Other - Other - L717TSEH09POL2C309-1
click to zoom
3D Models
L717TSEH09POL2C309 - Amphenol - 3D model - Other - L717TSEH09POL2C309-1
click to zoom

L717TSEH09POL2C309 Details

  • Manufacturer Part Number:

    L717TSEH09POL2C309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

L717TSEH09POL2C309 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the L717TSEH09POL2C309 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302F, which includes sinusoidal vibration testing at 10-2000 Hz, 20 G peak acceleration.
  • The L717TSEH09POL2C309 is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended storage and operating conditions to ensure reliable performance.
  • The L717TSEH09POL2C309 has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the L717TSEH09POL2C309 is designed to be compatible with other Amphenol products and third-party components that meet the same MIL-DTL-55302F specifications. However, it's essential to verify compatibility and ensure proper mating before use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L717TSEH09POL2C309 Overview

Use the download button to access the L717TSEH09POL2C309 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L717T, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
