Symbol

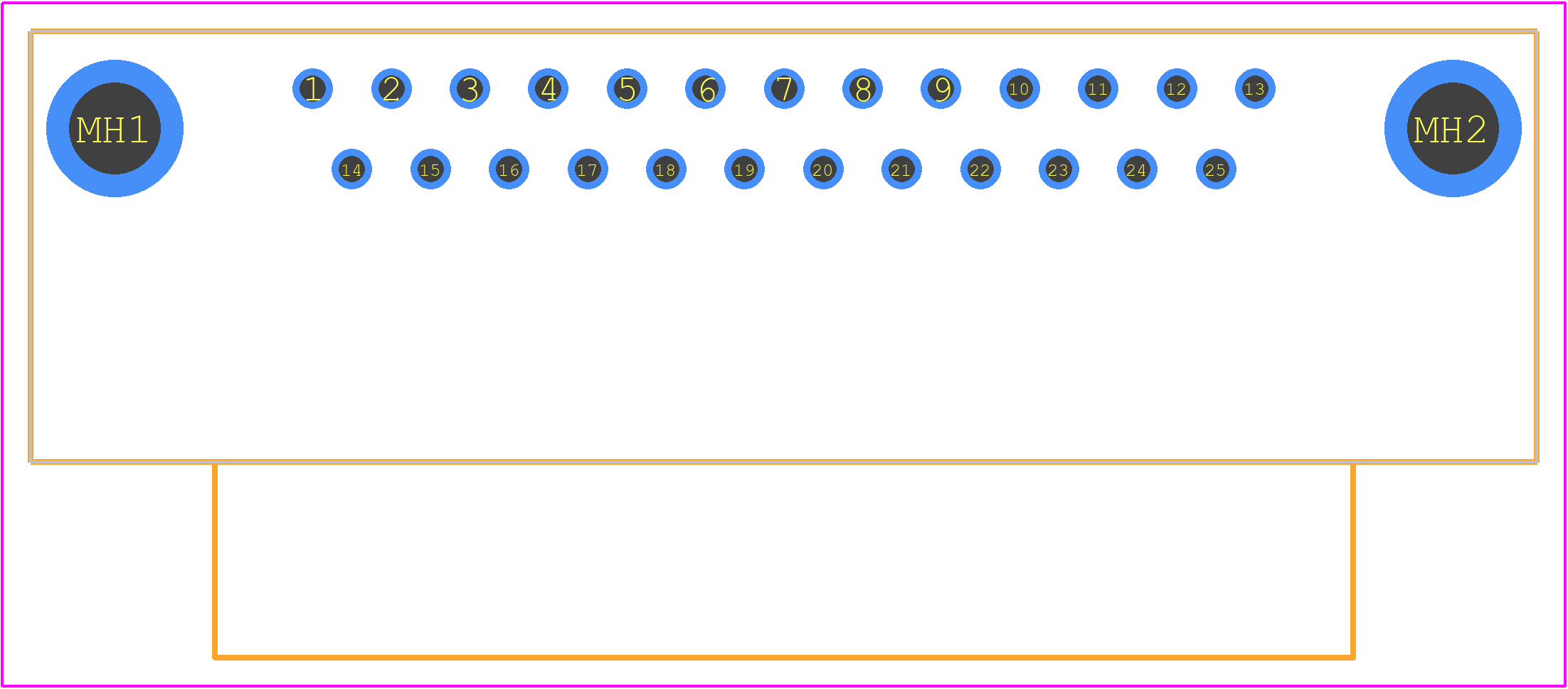

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L77DB25P1AMN
- Part Number L77DB25P1AMN
- Manufacturer Amphenol
- Pin Count 27
- Part Category Connector
- Package Category Other
- Footprint Name Other - L77DB25P1AMN-5
- Released Date Apr 14, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
L77DB25P1AMN Details
-
Manufacturer Part Number:
L77DB25P1AMN
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
8.5
-
Additional Feature:
STANDARD: MIL C24308
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
D SUBMINIATURE CONNECTOR
L77DB25P1AMN Frequently Asked Questions (FAQs)
-
The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.3 in-lbs) to ensure secure mating and prevent damage to the connector.
-
Yes, the L77DB25P1AMN connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
-
Yes, the L77DB25P1AMN connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
-
The L77DB25P1AMN connector has a mating cycle life of 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
-
The L77DB25P1AMN connector can be used with both cable assemblies and PCB mounting, offering flexibility in design and application.
Trust Checks
Expert Contribution
System Verified
Community Approved
L77DB25P1AMN Overview
Use the download button to access the L77DB25P1AMN schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like L77DB,
or try a keyword search, such as D Type Connectors
About Amphenol
Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems.
The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
