L77HDD78SD1CH4F - Amphenol

Description: 78 Position D-Sub, High Density Receptacle, Female Sockets Connector , 250V , 3A , -55°C ~ 105°C

Download L77HDD78SD1CH4F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L77HDD78SD1CH4F - Amphenol - PCB symbol
click to zoom
PCB Footprints

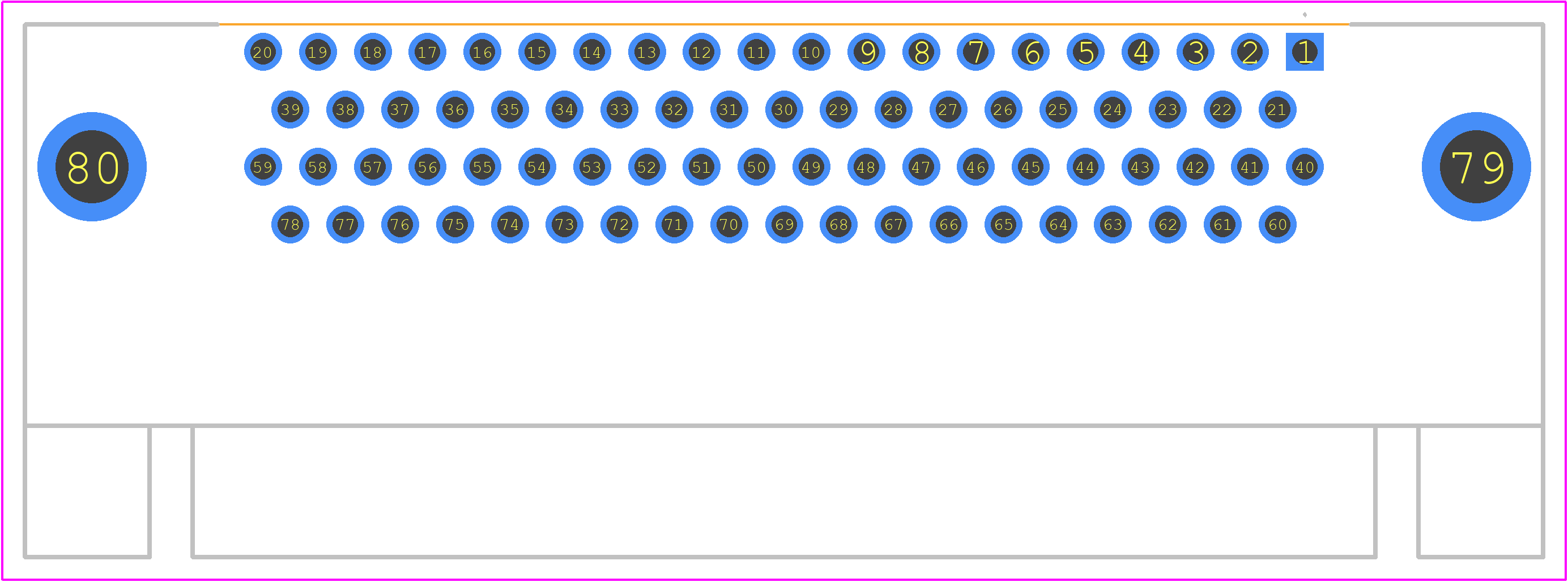

L77HDD78SD1CH4F - Amphenol PCB footprint - Other - Other - L77HDD78SD1CH4F-1
click to zoom
3D Models
L77HDD78SD1CH4F - Amphenol - 3D model - Other - L77HDD78SD1CH4F-1
click to zoom

L77HDD78SD1CH4F Details

  • Manufacturer Part Number:

    L77HDD78SD1CH4F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L77HDD78SD1CH4F Overview

Use the download button to access the L77HDD78SD1CH4F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L77HD, or try a keyword search, such as Other Interconnects

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
