L77SDA15SA4CH4F footprint, schematic symbol and 3D model by Amphenol

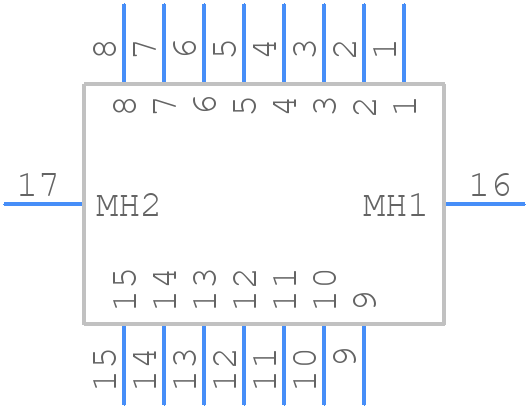

Symbol

click to zoom

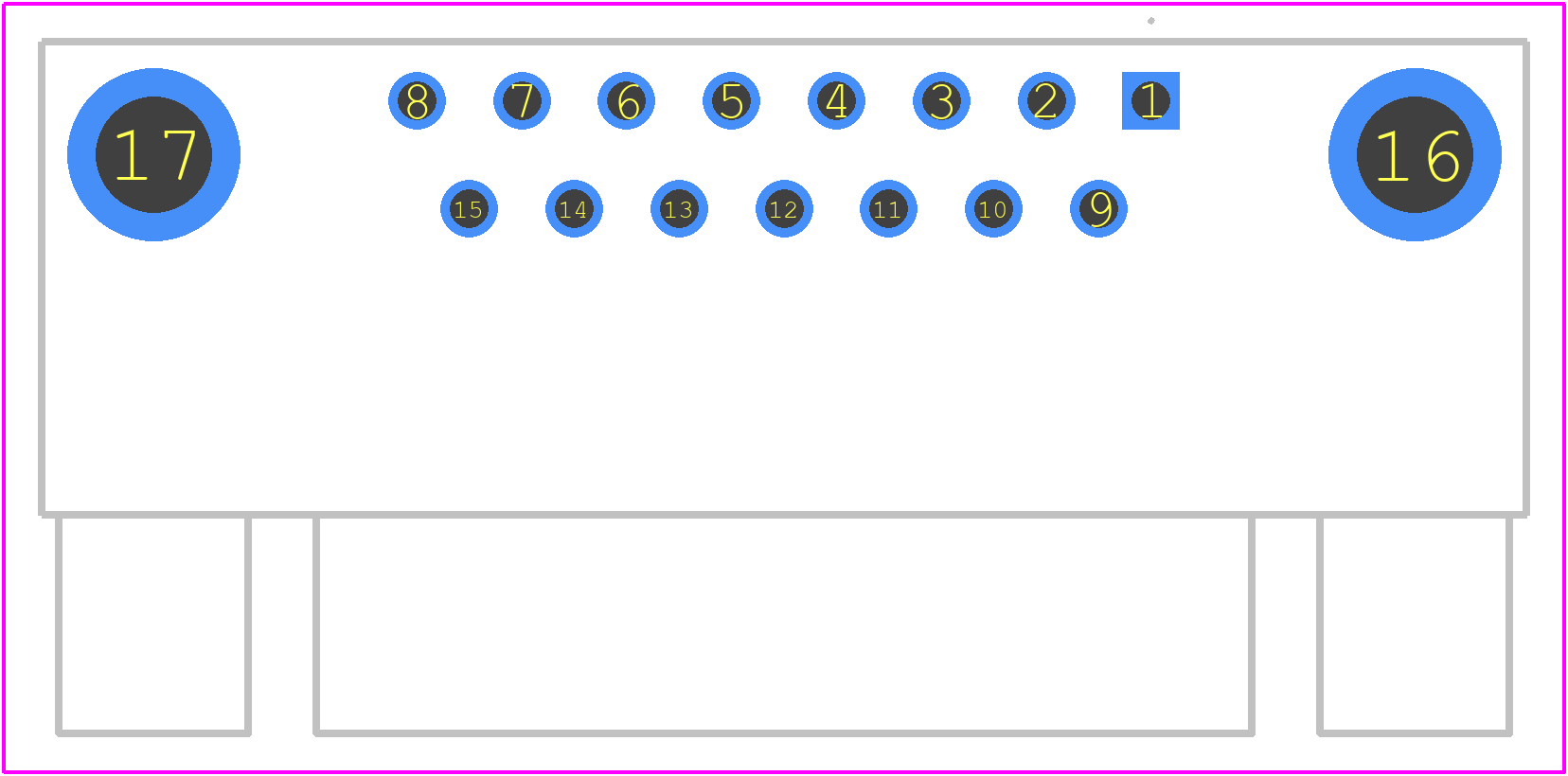

PCB Footprints

L77SDA15SA4CH4F - Amphenol PCB footprint - Other - Other - L77SDA15SA4CH4F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for L77SDA15SA4CH4F
Part Number L77SDA15SA4CH4F
Manufacturer Amphenol
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - L77SDA15SA4CH4F-2
Released Date Feb 18, 2025
Last Modified Date Feb 21, 2025 2:07 AM UTC
Pinout / Pin List Click Here (Member Only)

L77SDA15SA4CH4F Details

Manufacturer Part Number:
L77SDA15SA4CH4F
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
8.18
Additional Feature:
STANDARD: MIL-C24308
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYETHYLENE
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
2/A
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94V-0

L77SDA15SA4CH4F Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in) for the screw locks on the L77SDA15SA4CH4F connector.
Yes, the L77SDA15SA4CH4F connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
Yes, the L77SDA15SA4CH4F connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C (-133°F to 302°F) and humidity up to 95% RH.
The L77SDA15SA4CH4F connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
Yes, the L77SDA15SA4CH4F connector is part of the Amphenol Corporation's L77 series, which is designed to be compatible with other connectors in the same series.

Trust Checks

Community Provided

System Verified

Community Approved

L77SDA15SA4CH4F Overview

Use the download button to access the L77SDA15SA4CH4F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like L77SD, or try a keyword search, such as Other Interconnects
