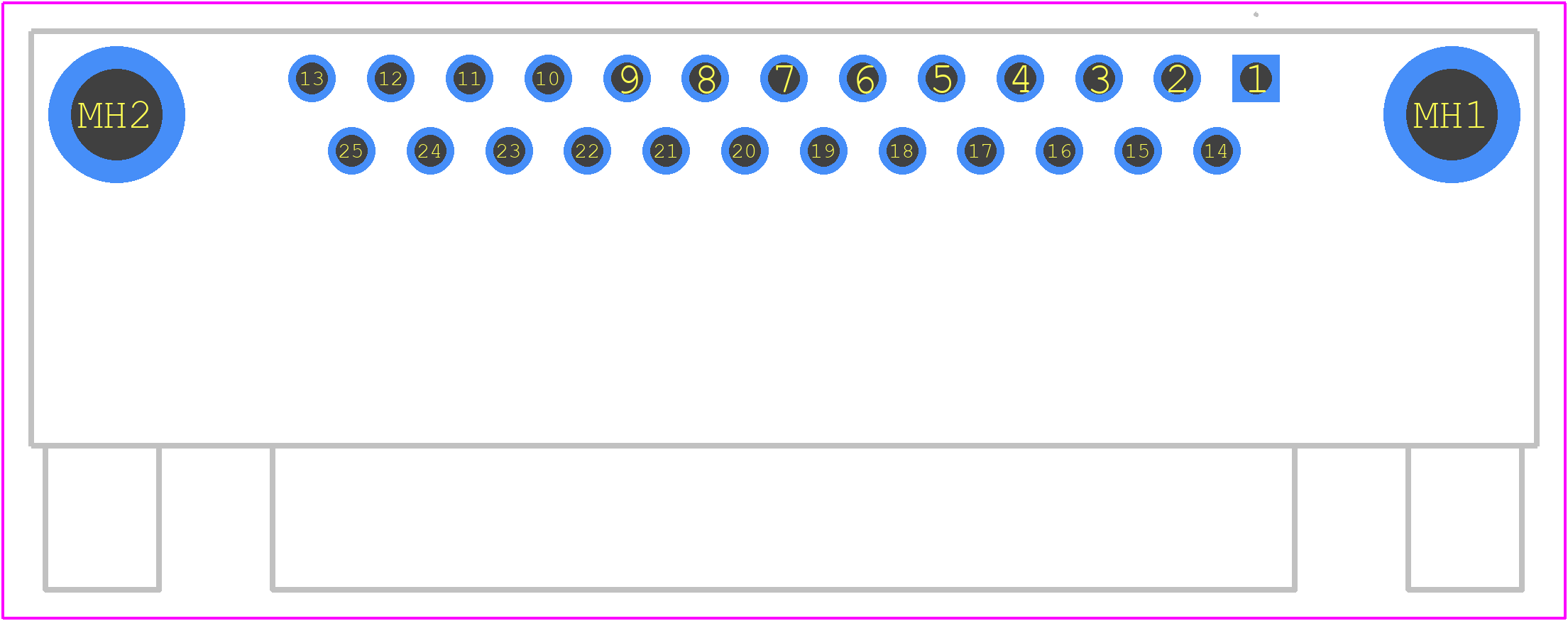

L77SDB25P1ACH4F - Amphenol

L77SDB25P1ACH4F Details

• Manufacturer Part Number:

  L77SDB25P1ACH4F

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  8.5

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.494 inch

• Body Depth:

  0.49 inch

• Body Length:

  2.088 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  15 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1400VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  8.896 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  SCREWLOCKS

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Terminal Length:

  0.11 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .5838 N
