L77TSBH25SOL2C309 - Amphenol

L77TSBH25SOL2C309 Details

• Manufacturer Part Number:

  L77TSBH25SOL2C309

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  8.5

• Additional Feature:

  STANDARD: MIL-C-24308

• Board Mounting Option:

  HOLE .120

• Body Breadth:

  0.494 inch

• Body Depth:

  0.452 inch

• Body Length:

  2.09 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD FLASH

• Contact Finish Termination:

  Gold Flash (Au)

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.11 inch

• Mating Contact Row Spacing:

  0.11 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED INSERT

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Option:

  GENERAL PURPOSE

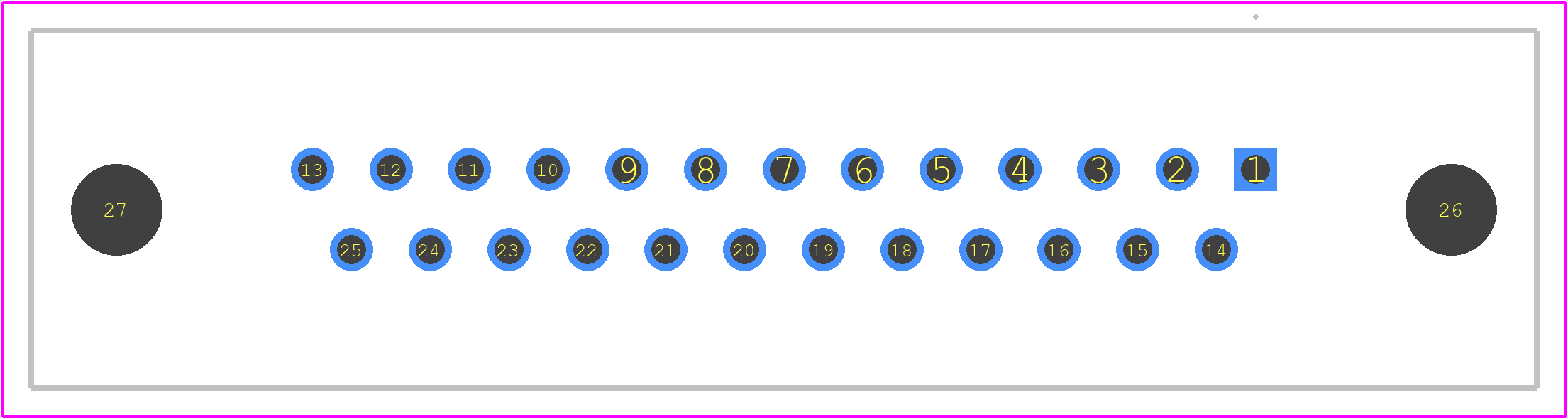

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Rated Current (Signal):

  5 A

• Shell Finish:

  NICKEL/TIN

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0
