L7824CD2T-TR - STMicroelectronics

L7824CD2T-TR Details

• Manufacturer Part Number:

  L7824CD2T-TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

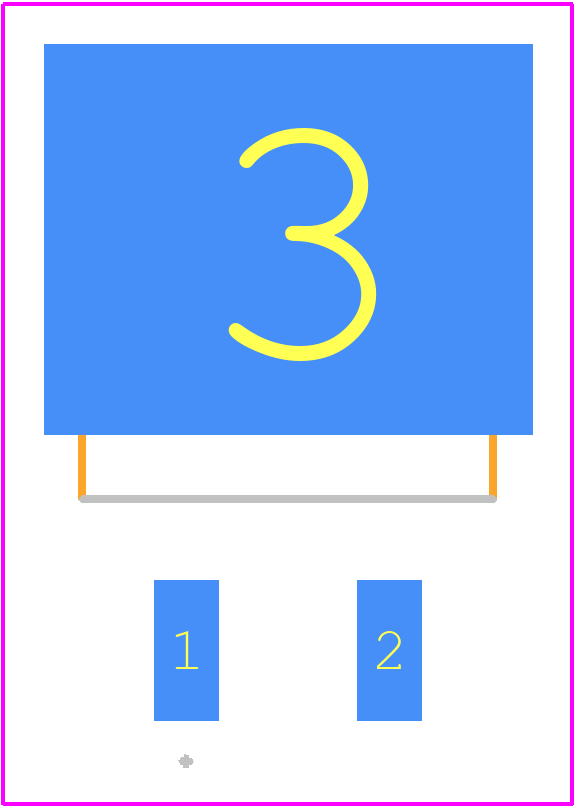

• Part Package Code:

  D2PAK

• Pin Count:

  3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  1980-01-04

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6.16

• Adjustability:

  FIXED

• Dropout Voltage1-Nom:

  2 V

• Input Voltage Absolute-Max:

  40 V

• Input Voltage-Max:

  37 V

• Input Voltage-Min:

  27 V

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Length:

  10.2 mm

• Line Regulation-Max:

  0.48%

• Load Regulation-Max:

  0.48%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  2

• Operating Temperature TJ-Max:

  125 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  25.2 V

• Output Voltage1-Min:

  22.8 V

• Output Voltage1-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP3H,.55TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Seated Height-Max:

  4.83 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  4%

• Width:

  9.15 mm
