- Part Number L86-M33
- Manufacturer Quectel
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - L80-M39
- Released Date Nov 24, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
L86-M33 Details
-
Manufacturer Part Number:
L86-M33
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
MODULE-12
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Quectel Wireless Solutions Co Ltd
-
JESD-30 Code:
S-XDMA-N12
-
Length:
18.4 mm
-
Number of Functions:
1
-
Number of Terminals:
12
L86-M33 Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to first apply the power supply voltage (VDD) and then apply the enable signal (EN). This ensures that the module is properly initialized and configured.
-
The L86-M33 module supports multiple frequency bands and can be configured for use in different regions using AT commands. The specific commands and settings will depend on the region and the desired frequency band.
-
The maximum current consumption of the L86-M33 module is typically around 450mA during transmission and 20mA during reception. However, this can vary depending on the specific use case and operating conditions.
-
To troubleshoot connectivity issues, check the module's power supply, antenna connection, and SIM card configuration. Also, use AT commands to check the module's status and configuration. If issues persist, contact Quectel support for further assistance.
-
The L86-M33 module is designed to operate in a temperature range of -40°C to +85°C. However, it's recommended to consult the datasheet and application notes for specific guidance on using the module in extreme temperature environments.
Trust Checks
Expert Contribution
System Verified
Community Approved
L86-M33 Overview

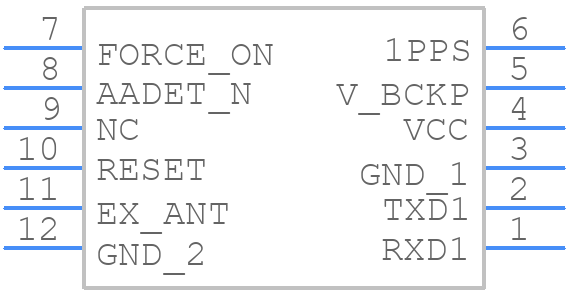

Use the download button to access the L86-M33 schematic symbol, PCB footprint, and 3D model.
