L9177ATR - STMicroelectronics

Description: STMICROELECTRONICS - L9177ATR - PERIPHERAL ON CHIP, AEC-Q100, TQFP-64

Download L9177ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L9177ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

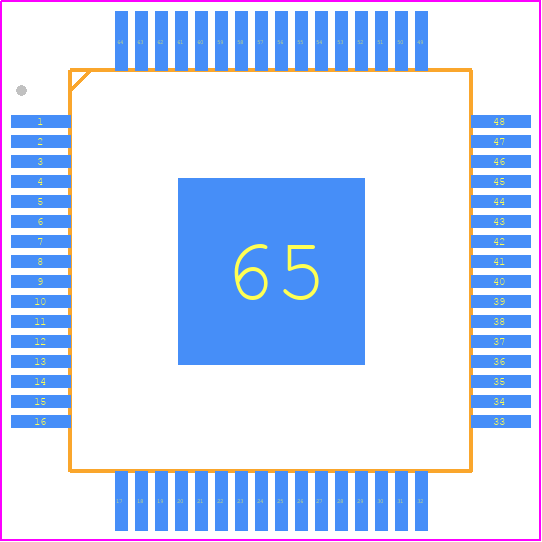

L9177ATR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - T816130A1S102CEU
click to zoom
3D Models
L9177ATR - STMicroelectronics - 3D model - Quad Flat Packages - T816130A1S102CEU
click to zoom

L9177ATR Details

  • Manufacturer Part Number:

    L9177ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-64

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

L9177ATR Frequently Asked Questions (FAQs)

  • The L9177ATR can handle a maximum input voltage of 40V, but it's recommended to keep it below 36V for reliable operation.
  • To ensure stability, make sure to follow the recommended PCB layout and component placement guidelines, and add a 10uF ceramic capacitor between VIN and GND pins. Also, ensure that the input voltage is within the recommended range.
  • The minimum input voltage required for the L9177ATR to operate is 6.5V, but it's recommended to keep it above 7V for reliable operation.
  • The L9177ATR is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation.
  • The L9177ATR has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's recommended to add external protection components such as fuses and thermal sensors to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9177ATR Overview

Use the download button to access the L9177ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9177, or try a keyword search, such as Other Interface ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
