- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L9348
- Part Number L9348
- Manufacturer STMicroelectronics
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSO-36
- Released Date Aug 27, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9348 Details
-
Manufacturer Part Number:
L9348
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SOIC
-
Package Description:
POWER, SOP-36
-
Pin Count:
36
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
52 Weeks
-
Manufacturer:
STMicroelectronics
L9348 Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
-
The maximum junction temperature of the L9348 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and to prevent thermal shutdown.
-
Yes, the L9348 is designed to operate in high-temperature environments, but it's essential to ensure that the device is properly cooled and that the junction temperature remains within the specified limits. STMicroelectronics provides guidelines for high-temperature operation in the application note AN4553.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4553, which covers common issues and their solutions, such as output voltage regulation, current sensing, and thermal management. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify and debug issues with the L9348.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9348 Overview

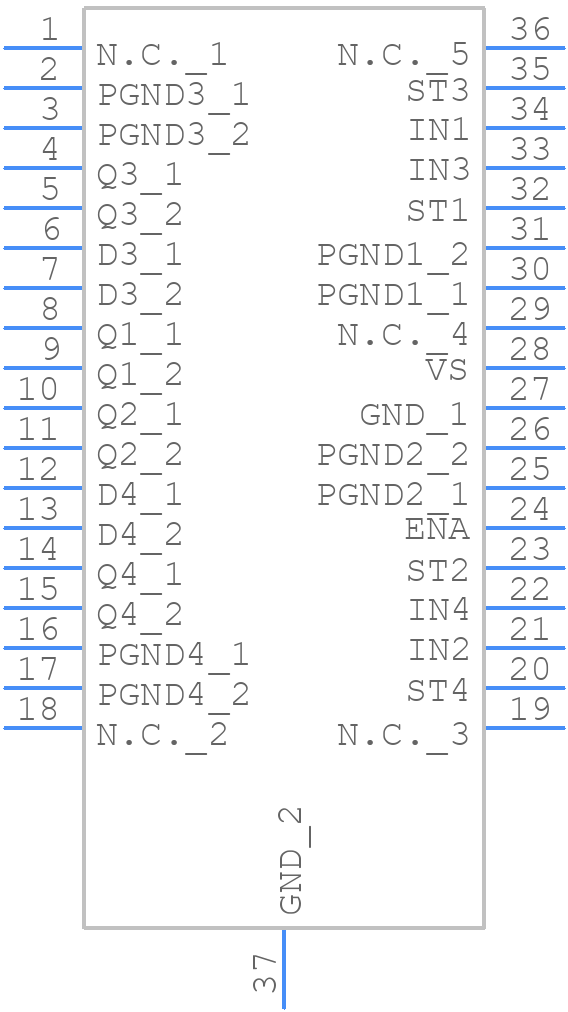

Use the download button to access the L9348 schematic symbol, PCB footprint, and 3D model.
